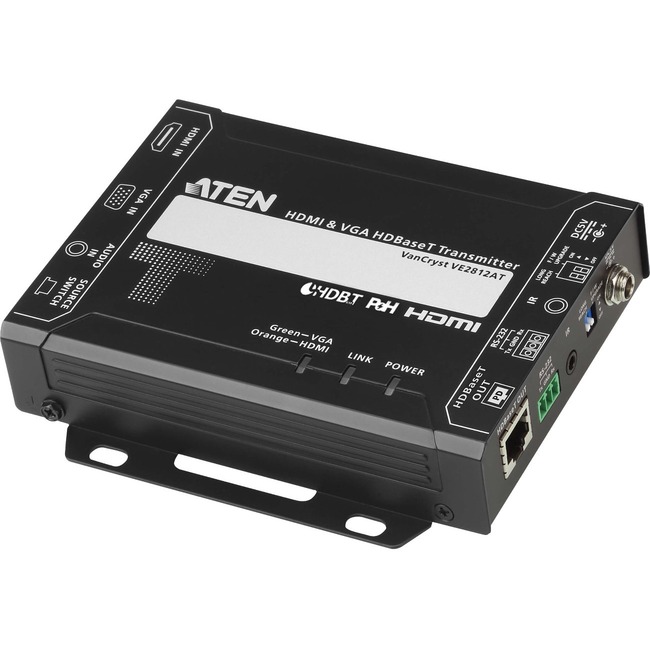

ATEN HDMI & VGA HDBaseT Transmitter with POH (4K@100m) (HDBaseT Class A) - 2 Input Device - 492.13 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 1 x VGA In - 4K UHD - 4096 x 2160 - Twisted Pair - Category 6a - Desktop, Rack-mountable
2 Input Device - 492.13 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 1 x VGA In - 4K UHD - 4096 x 2160 - Twisted Pair - Category 6a - Desktop, Rack-mountable
| Number of Input Devices Supported | 2 |
| Number of Input Devices Supported | 2 |
| Transmitter Depth | 5.64" |
| Transmitter Depth | 5.64" |
| Transmitter Height | 1.18" |
| Transmitter Height | 1.18" |
| Transmitter Weight (Approximate) | 1.04 lb |
| Transmitter Weight (Approximate) | 1.04 lb |
| Transmitter Width | 4.84" |
| Transmitter Width | 4.84" |
| Brand Name | ATEN |
| Brand Name | ATEN |
| Connectivity technology | Wired |
| Connectivity technology | Wired |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Form factor | Desktop |
| Form factor | Rack-mountable |
| Form factor | Rack-mountable |
| Form factor | Desktop |
| Graphics Modes | 4K UHD |
| Graphics Modes | 4K UHD |
| Manufacturer | ATEN Technology Inc |
| Manufacturer | ATEN Technology Inc |
| Manufacturer Part Number | VE2812AT |
| Manufacturer Part Number | VE2812AT |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Marketing Information | ATEN VE2812AT is a transmitter for sending VGA (with audio) and HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring built-in PoH (Power over HDBaseT) function the VE2812AT receives power supply from the HDBaseT output port on the connected device. This eliminates the need for a power adapter and reduces the hassle of power line deployment behind the wall. The VE2812AT guarantees reliable transmission of HDMI signals supporting 3D Deep Color and embedded HD lossless audio formats. It also ensures transmission of VGA (with audio) at distance up to 100 m. In addition it supports Long Reach Mode up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p. For utility flexibility the VE2812AT can serve as a video switch by connecting two sources and distribute them to an identical output. The VE2812AT is recommended to be deployed in paired with the VE2812R. The VE2812R can carry on IR/RS-232 from the VE2812R to the VE2812AT allowing users to remotely control the VE2812AT unit through RS-232 command mode via input port switching. The solution is ideal for a variety of settings such as meeting rooms digital educational environment or wherever high video quality is required. |
| Marketing Information | ATEN VE2812AT is a transmitter for sending VGA (with audio) and HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring built-in PoH (Power over HDBaseT) function the VE2812AT receives power supply from the HDBaseT output port on the connected device. This eliminates the need for a power adapter and reduces the hassle of power line deployment behind the wall. The VE2812AT guarantees reliable transmission of HDMI signals supporting 3D Deep Color and embedded HD lossless audio formats. It also ensures transmission of VGA (with audio) at distance up to 100 m. In addition it supports Long Reach Mode up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p. For utility flexibility the VE2812AT can serve as a video switch by connecting two sources and distribute them to an identical output. The VE2812AT is recommended to be deployed in paired with the VE2812R. The VE2812R can carry on IR/RS-232 from the VE2812R to the VE2812AT allowing users to remotely control the VE2812AT unit through RS-232 command mode via input port switching. The solution is ideal for a variety of settings such as meeting rooms digital educational environment or wherever high video quality is required. |
| Maximum Operating Distance | 492.13 ft |
| Maximum Operating Distance | 492.13 ft |
| Maximum Video Resolution | 4096 x 2160 |
| Maximum Video Resolution | 4096 x 2160 |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Twisted Pair |
| Number of Network (RJ-45) Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Package Contents | - HDMI & VGA HDBaseT Transmitter with POH (4K@100m) (HDBaseT Class A)
- 1 x RS-232 Terminal Block
- 4 x Foot Pads
- 1 x Power Adapter
- 1 x User Instructions
|
| Package Contents | - HDMI & VGA HDBaseT Transmitter with POH (4K@100m) (HDBaseT Class A)
- 1 x RS-232 Terminal Block
- 4 x Foot Pads
- 1 x Power Adapter
- 1 x User Instructions
|
| Product Line | VanCryst |
| Product Line | VanCryst |
| Product Name | HDMI & VGA HDBaseT Transmitter with POH (4K@100m) (HDBaseT Class A) |
| Product Name | HDMI & VGA HDBaseT Transmitter with POH (4K@100m) (HDBaseT Class A) |
| Product Type | Video Extender Transmitter |
| Product Type | Video Extender Transmitter |
| Twisted Pair Cable Standard | Category 6a |
| Twisted Pair Cable Standard | Category 6a |
| UPC Alternates | 672792011382 |
| UPC Alternates | 672792011382 |
