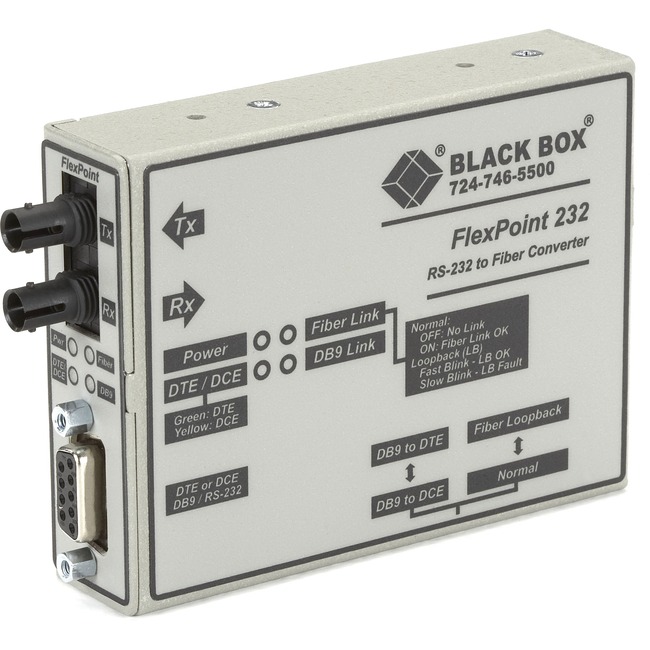

Black Box Flexpoint Async RS232 Extender - Fiber DB9 Female ST MM 5-km - New - 1 x ST Ports - DuplexST Port - Multi-mode - Standalone, Hot-swappable, Rack-mountable, DIN Rail Mountable, Wall Mountable - TAA Compliant
New - 1 x ST Ports - DuplexST Port - Multi-mode - Standalone, Hot-swappable, Rack-mountable, DIN Rail Mountable, Wall Mountable - TAA Compliant
| Fiber Mode Supported | Multi-mode |
| Maximum Distance Supported | 3.11 Mile |
| Number of ST Ports | 1 |
| ST Port Type | Duplex |
| Brand Name | Black Box |
| Country of origin | United States |
| Depth | 4" |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form factor | Standalone |
| Form factor | Rack-mountable |
| Form factor | Hot-swappable |
| Form factor | Wall Mountable |
| Form factor | DIN Rail Mountable |
| Height | 1" |
| Limited Warranty | 2 Year |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | ME661A-MST |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | - Autosenses speeds up to 115.2 kbps.
- Works as a standalone or a hot-swappable chassis-based extender.
- Easy to install.
- Includes a DC power supply. Or you can power multiple units with the space-saving 19" rackmountable FlexPoint Power Chassis.
- Features DTE/DCE configuration for easy connections to DTE or DCE devices using straight-through cabling.
- Supports half- and full-duplex.
- Remote loop capability for remote fiber testing and LEDs for status monitoring.
Extend async RS232 devices beyond the 50 ft limitation using multimode fiber cables at data rates up to 115.2 kbps and reach distances of 3.1 mi. (5 km). Serial extenders work well in factory automation building automation and process automation where PLC's with RS232 interfaces are used to control devices. The ability to extend the distance to their devices over multimode fiber while also adding protection from electrical interference which can be caused by large motors which are prevalent in these environments is very beneficial. |
| Media Type Supported | Optical Fiber |
| Package Contents | - Flexpoint Async RS232 Extender - Fiber DB9 Female ST MM 5-km
- DC Power Supply (9 VDC/500 mA or 5 VDC/750 mA)
|
| Power source | DC |
| Product Condition | New |
| Product Line | FlexPoint |
| Product Name | Flexpoint Async RS232 Extender - Fiber DB9 Female ST MM 5-km |
| Product Type | Transceiver/Media Converter |
| UPC Alternates | 822088111481 |
| Weight (Approximate) | 6.40 oz |
| Width | 3" |
