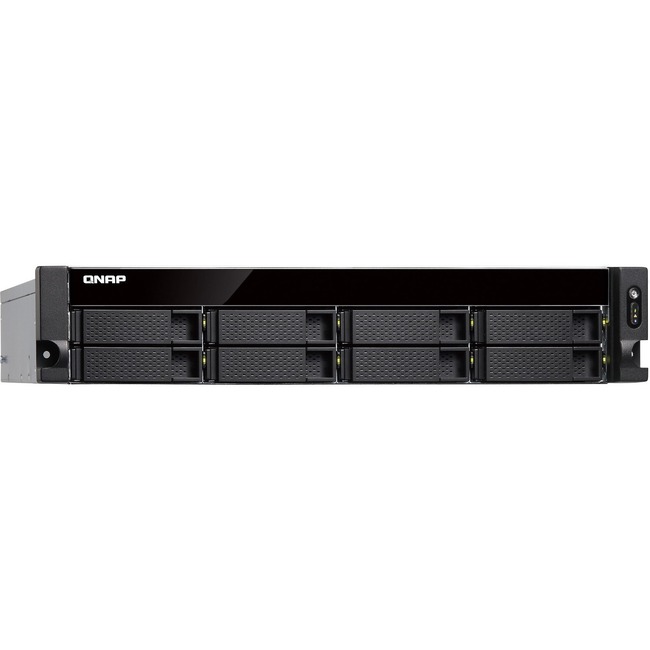

QNAP TS-877XU-1200-4G SAN/NAS Storage System - AMD Ryzen 3 1200 Quad-core (4 Core) 3.10 GHz - 8 x HDD Supported - 8 x SSD Supported - 4 GB RAM DDR4 SDRAM - Serial ATA/600 Controller - RAID Supported 0, 1, 5, 6, 10, 50, 60, Hot Spare, JBOD - 8 x Total Bays - 8 x 2.5"/3.5" Bay - 6 x Total Slot(s) - 10 Gigabit Ethernet - 6 USB Port(s) - 4 USB 3.0 Port(s) - Network (RJ-45) - QTS 4.3.4 - DNS, Telnet, DLNA, IPv6, FTPS, WEBDAV, IPMI, SSL/TLS, AFP, CIFS, HTTPS, ... - 2U - Rack-mountable
AMD Ryzen 3 1200 Quad-core (4 Core) 3.10 GHz - 8 x HDD Supported - 8 x SSD Supported - 4 GB RAM DDR4 SDRAM - Serial ATA/600 Controller - RAID Supported 0, 1, 5, 6, 10, 50, 60, Hot Spare, JBOD - 8 x Total Bays - 8 x 2.5"/3.5" Bay - 6 x Total Slot(s) - 10 Gigabit Ethernet - 6 USB Port(s) - 4 USB 3.0 Port(s) - Network (RJ-45) - QTS 4.3.4 - DNS, Telnet, DLNA, IPv6, FTPS, WEBDAV, IPMI, SSL/TLS, AFP, CIFS, HTTPS, ... - 2U - Rack-mountable
| Maximum Power Supply Wattage | 350 W |
| Maximum Power Supply Wattage | 350 W |
| Number of Hard Drives Installed | No |
| Number of Hard Drives Installed | No |
| Number of Total Expansion Slots | 6 |
| Number of Total Expansion Slots | 6 |
| Processor Core | Quad-core (4 Core) |
| Processor Core | Quad-core (4 Core) |
| Brand Name | QNAP |
| Brand Name | QNAP |
| Controller Type | Serial ATA/600 |
| Controller Type | Serial ATA/600 |
| Depth | 22.1" |
| Depth | 22.1" |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Expansion Slot Type | PCI Express 3.0 x4 |
| Expansion Slot Type | SFP+ |
| Expansion Slot Type | PCI Express 3.0 x4 |
| Expansion Slot Type | SFP+ |
| Expansion Slot Type | PCI Express 3.0 x8 |
| Expansion Slot Type | PCI Express 3.0 x8 |
| Form factor | Rack-mountable |
| Form factor | Rack-mountable |
| Height | 3.5" |
| Height | 3.5" |
| Limited Warranty | 2 Year |
| Limited Warranty | 2 Year |
| Manufacturer | QNAP Systems |
| Manufacturer | QNAP Systems |
| Manufacturer Part Number | TS-877XU-1200-4G-US |
| Manufacturer Part Number | TS-877XU-1200-4G-US |
| Manufacturer Website Address | http://www.qnap.com |
| Manufacturer Website Address | http://www.qnap.com |
| Marketing Information | Ryzen™-based rackmount NAS with up to 4 cores/4 threads and integrated dual 10GbE SFP+ ports to optimize system performance
Powered by AMD's powerful Ryzen™ processor the TS-877XU is capable of boosting virtual machine performance with up to 4 cores/4 threads and Turbo Core up to 3.4 GHz. Four PCIe Gen.3 slots provides expandability to provide more potential applications and functionality for the TS-877XU. Two 10GbE SFP+ ports provide higher bandwidth to empower applications like virtualization 4K video editing and file sharing.
PCIe expandability allows for installing 10GbE/40GbE adapters PCIe NVMe SSD graphics cards USB 3.1 Gen 2 (10Gbps) cards or wireless network cards.
Supports AMD Radeon™ and NVIDIA® graphics cards for video processing or GPU-passthrough to VMs.
Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.
Scalable storage supporting virtualization containerized apps centralized storage backup sharing and disaster recovery.
RAID 50/60 is recommended for NAS with over 6 disks to strike a balance between capacity protection and performance
Top-class hardware engineering with high I/O expandability The hardware design of the TS-877XU provides exceptional system performance and expandability to fulfill diverse application requirements. Absolute performance with AMD Ryzen™ and up to 64GB RAM Powered by a high-performance AMD Ryzen™ 3 1200 processor with AES-NI encryption acceleration and up to 64GB DDR4 RAM the TS-877XU delivers aggressive yet power-smart performance to meet your multitasking demands. For resource-demanding business applications such as VDI R&D private cloud and server virtualization look no further than the TS-877XU. Dual-channel Memory to deliver power-smart performance The TS-877XU supports dual-channel DDR-4 memory and four Long-DIMM slots. When using paired memory modules the TS-877XU can leverage the power of dual-channel architecture to boost performance. You also customize the memory configuration (supports up to 64GB RAM) of the TS-877XU making it the most ideal and cost-efficient storage solution for environments like virtualization that contain dynamically-changing workloads. Extend NAS functionality with PCIe slots The TS-877XU features four PCIe slots that allow for installing 10GbE/40GbE network cards QM2 M.2 SSD/10GbE PCIe cards or compatible wireless network cards for greater application potential. 10GbE/ 40GbE adapters Install 10GbE/40GbE adapters to support lightning-fast throughput for bandwidth-demanding tasks such as virtualization and fast backup/restoration for an ever-growing amount of data.QM2 card with M.2 SSD/10GbE support QM2 card with M.2 SSD/10GbE support Install QNAP's innovative QM2 card to add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS to enjoy optimal performance. Wireless network cards Install QNAP's wireless network card (QWA-AC2600) to work with WirelessAP Station to transform the NAS into a convenient wireless base station allowing network resources of the NAS to be shared with multiple devices. |
| Marketing Information | Ryzen™-based rackmount NAS with up to 4 cores/4 threads and integrated dual 10GbE SFP+ ports to optimize system performance
Powered by AMD's powerful Ryzen™ processor the TS-877XU is capable of boosting virtual machine performance with up to 4 cores/4 threads and Turbo Core up to 3.4 GHz. Four PCIe Gen.3 slots provides expandability to provide more potential applications and functionality for the TS-877XU. Two 10GbE SFP+ ports provide higher bandwidth to empower applications like virtualization 4K video editing and file sharing.
PCIe expandability allows for installing 10GbE/40GbE adapters PCIe NVMe SSD graphics cards USB 3.1 Gen 2 (10Gbps) cards or wireless network cards.
Supports AMD Radeon™ and NVIDIA® graphics cards for video processing or GPU-passthrough to VMs.
Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.
Scalable storage supporting virtualization containerized apps centralized storage backup sharing and disaster recovery.
RAID 50/60 is recommended for NAS with over 6 disks to strike a balance between capacity protection and performance
Top-class hardware engineering with high I/O expandability The hardware design of the TS-877XU provides exceptional system performance and expandability to fulfill diverse application requirements. Absolute performance with AMD Ryzen™ and up to 64GB RAM Powered by a high-performance AMD Ryzen™ 3 1200 processor with AES-NI encryption acceleration and up to 64GB DDR4 RAM the TS-877XU delivers aggressive yet power-smart performance to meet your multitasking demands. For resource-demanding business applications such as VDI R&D private cloud and server virtualization look no further than the TS-877XU. Dual-channel Memory to deliver power-smart performance The TS-877XU supports dual-channel DDR-4 memory and four Long-DIMM slots. When using paired memory modules the TS-877XU can leverage the power of dual-channel architecture to boost performance. You also customize the memory configuration (supports up to 64GB RAM) of the TS-877XU making it the most ideal and cost-efficient storage solution for environments like virtualization that contain dynamically-changing workloads. Extend NAS functionality with PCIe slots The TS-877XU features four PCIe slots that allow for installing 10GbE/40GbE network cards QM2 M.2 SSD/10GbE PCIe cards or compatible wireless network cards for greater application potential. 10GbE/ 40GbE adapters Install 10GbE/40GbE adapters to support lightning-fast throughput for bandwidth-demanding tasks such as virtualization and fast backup/restoration for an ever-growing amount of data.QM2 card with M.2 SSD/10GbE support QM2 card with M.2 SSD/10GbE support Install QNAP's innovative QM2 card to add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS to enjoy optimal performance. Wireless network cards Install QNAP's wireless network card (QWA-AC2600) to work with WirelessAP Station to transform the NAS into a convenient wireless base station allowing network resources of the NAS to be shared with multiple devices. |
| Memory Technology | DDR4 SDRAM |
| Memory Technology | DDR4 SDRAM |
| Number of Total Expansion Bays | 8 |
| Number of Total Expansion Bays | 8 |
| Number of USB 3.0 Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Operating System | QTS 4.3.4 |
| Operating System | QTS 4.3.4 |
| Package Contents | - TS-877XU-1200-4G SAN/NAS Storage System
- 2 x Ethernet Cables
- 1 x Power Cord
- 32 x Flat Head Screws (for 3.5" HDD)
- 24 x Flat Head Screws (for 2.5" HDD)
- Quick Installation Guide (QIG)
|
| Package Contents | - TS-877XU-1200-4G SAN/NAS Storage System
- 2 x Ethernet Cables
- 1 x Power Cord
- 32 x Flat Head Screws (for 3.5" HDD)
- 24 x Flat Head Screws (for 2.5" HDD)
- Quick Installation Guide (QIG)
|
| Processor Manufacturer | AMD |
| Processor Manufacturer | AMD |
| Processor model | 1200 |
| Processor model | 1200 |
| Processor Speed | 3.10 GHz |
| Processor Speed | 3.10 GHz |
| Processor Type | Ryzen 3 |
| Processor Type | Ryzen 3 |
| Product Model | TS-877XU-1200-4G |
| Product Model | TS-877XU-1200-4G |
| Product Name | TS-877XU-1200-4G SAN/NAS Storage System |
| Product Name | TS-877XU-1200-4G SAN/NAS Storage System |
| Product Series | TS-x77XU |
| Product Series | TS-x77XU |
| Product Type | SAN/NAS Storage System |
| Product Type | SAN/NAS Storage System |
| Protocols | SMTP |
| Protocols | DNS |
| Protocols | UPnP |
| Protocols | RSync |
| Protocols | SMB |
| Protocols | iSCSI |
| Protocols | FTPS |
| Protocols | HTTPS |
| Protocols | TCP/IP |
| Protocols | SSL/TLS |
| Protocols | AFP |
| Protocols | DLNA |
| Protocols | HTTP |
| Protocols | IPv6 |
| Protocols | IPMI |
| Protocols | IPMI |
| Protocols | DDNS |
| Protocols | CIFS |
| Protocols | PPTP |
| Protocols | UPnP |
| Protocols | RSync |
| Protocols | SMB |
| Protocols | iSCSI |
| Protocols | FTPS |
| Protocols | CIFS |
| Protocols | WEBDAV |
| Protocols | DHCP |
| Protocols | DHCP |
| Protocols | DDNS |
| Protocols | CIFS/SMB |
| Protocols | LDAP |
| Protocols | SNMP |
| Protocols | IPv4 |
| Protocols | SSH |
| Protocols | SSH |
| Protocols | IPv4 |
| Protocols | SNMP |
