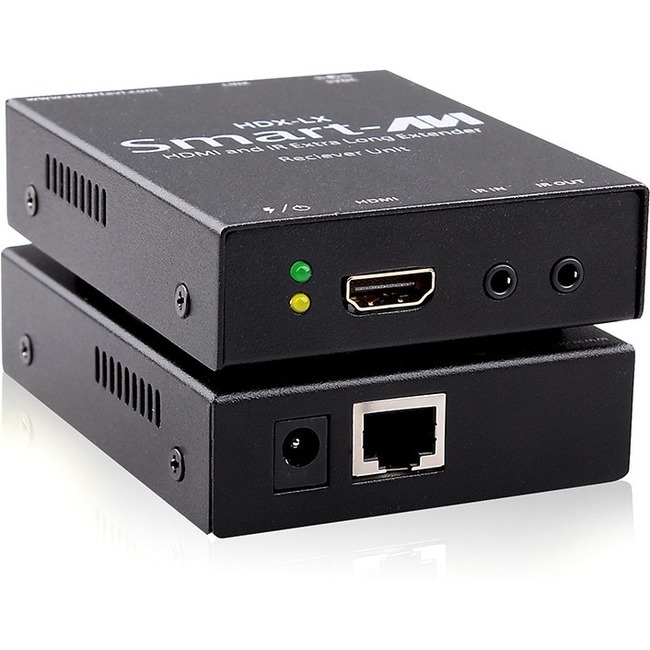

SmartAVI HDMI + IR Over a Single CAT5 UTP Cable Extender - 1 Input Device - 1 Output Device - 250 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - Twisted Pair - Category 5 - Wall Mountable, Wall Plate
1 Input Device - 1 Output Device - 250 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - Twisted Pair - Category 5 - Wall Mountable, Wall Plate
| Transmitter Depth | 3.70" |
| Transmitter Height | 0.90" |
| Transmitter Weight (Approximate) | 4.23 oz |
| Transmitter Width | 2.90" |
| Brand Name | SmartAVI |
| Connectivity technology | Wired |
| Country of origin | United States |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Wall Mountable |
| Form factor | Wall Plate |
| Graphics Modes | 4K |
| Limited Warranty | 1 Year |
| Manufacturer | Smart Audio Video Innovation |
| Manufacturer Part Number | HDX-LXS |
| Manufacturer Website Address | http://www.smartavi.com |
| Marketing Information | The HDX-LX uses a single CAT5 UTP cable to extend HDMI signals - including high-definition TV - over 250ft (75m) from the source. It is capable of transmitting high-resolution HD video up to 1080p. Controlling a video source is easy with the devices bi-directional IR extension. Whether it's for a home entertainment system or a commercial installation the HDX-LX delivers flexibility and control. - Supports resolutions up to 4K Ultra HD (@30Hz)
- Extends HDMI output over one CAT5 UTP cable
- Extends IR control signals for remote control
- Delivers uncompressed HD video up to
- 1080p@60Hz@48bits and 3D
- Data signals up to 3.4Gbps
- HDMI 1.3 and HDCP compliance
- IR support for IR-W100-EYE and IR-W100-LED
- Transmits high-quality Dolby TrueHD DTS-HD MA audio signals
- Technology
IR Accessories Supported - IR-W100-EYE External Infrared Receiver (IR range of 10-30 feet)
- IR-W100-LED IR Emitter (6 foot single LED)
|
| Maximum Operating Distance | 250 ft |
| Media Type Supported | Twisted Pair |
| Number of HDMI Inputs | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Package Contents | - HDX-LX-TX Transmitter
- HDX-LX-RX Receiver
- 2 x PS5VD2A Power Supplies
|
| Product Model | HDX-LX |
| Product Name | HDMI + IR Over a Single CAT5 UTP Cable Extender |
| Product Type | Video Extender Transmitter/Receiver |
| Twisted Pair Cable Standard | Category 5 |
| UPC Alternates | 638936931367 813280018036 |
