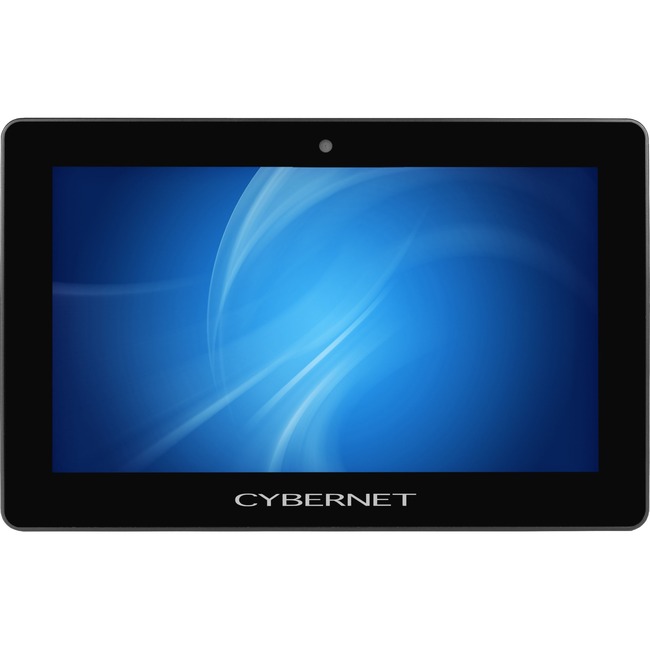

Cybernet M IPC-M12 All-in-One Computer - Intel Celeron J1900 Quad-core (4 Core) 2.42 GHz - 8 GB RAM DDR3L SDRAM - 128 GB SSD - 11.6" Full HD 1920 x 1080 Touchscreen Display - Desktop - Black - Intel Chip - Intel HD Z3700 DDR3L SDRAM - IEEE 802.11ac
Intel Chip - Intel HD Z3700 DDR3L SDRAM - IEEE 802.11ac
| Chipset | Intel |
| Graphics Controller Model | HD Z3700 |
| Graphics Memory Accessibility | Shared |
| Maximum Memory Supported | 8 GB |
| Memory Configuration | 1 x 8GB |
| Number Of Ethernet Ports | 2 |
| Processor Core | Quad-core (4 Core) |
| Total Solid State Drive Capacity | 128 GB |
| Wireless LAN Standard | IEEE 802.11ac |
| Brand Name | Cybernet |
| Country of origin | United States |
| Depth | 13.4" |
| Environmental Certification | ENERGY STAR 7.1 |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Desktop |
| Height | 2.2" |
| Limited Warranty | 4 Year |
| Manufacturer | Cybernet Manufacturing Inc |
| Manufacturer Part Number | IPC-M12 |
| Manufacturer Website Address | http://www.cybernetman.com |
| Marketing Information | The iPC M12 isn't your typical panel mount PC. It is designed with an aluminum housing and a sealed hardened touch glass. Because the unit has an aluminum housing there is no need to purchase a 3rd party case for your computer.
The iPC M12 is certified to meet IEC60068-2-27 standards for shock and vibration making it great for use as a control panel on heavy machinery.
The iPC M12 has been designed to accommodate both VESA mounting brackets as well as being used as a panel mount PC. Mounting holes on the lip of the chassis allows you to mount this unit flush in an enclosure or integrate directly into a piece of heavy equipment.
As a panel mount PC this unit will prevent ports and cables from being exposed to external elements adding an extra layer of protection. The metal chassis is also far less likely to warp or deform when compared to a plastic unit resulting in a flush fit for the life of your unit.
Despite its small footprint the iPC M12 is the perfect fit for a number of industrial applications. Manufacturing and distribution facilities are typically large expansive areas with limited access to AC power. What this typically means is either running power cabling throughout the facility which can be expensive and a hazard or planning your workflow around your available power outlets. This also makes it more difficult to add extra workstations to an existing production area.
Power over Ethernet provides much more flexibility. CAT5E and CAT6 cable is much easier to run through a facility and allows you to mount a new workstation anywhere.
The iPC M12 was created for the types of conditions typically found in manufacturing and industrial environments. The aluminum chassis makes this much more durable than a typical PC but beyond that it has been rated for extreme temperatures and humidity. The iPC M12 can withstand temperatures ranging from -20°C (-4°F) to 50°C (122°F). It has also been tested at 10%-90% humidity.
Beyond that the unit is fanless and IP65 rated preventing harmful particles like dust and liquid from penetrating the chassis and damaging components.
Even though IPC M12 panel mount pc has a small footprint it brings a lot of adaptability with it. Because of the number of full sized ports that come standard you can integrate it with a number of different devices.
The iPC M12 comes with 4 USB 3.0 ports an HDMI and two LAN ports. In addition it comes with COM ports and a DIO port making this one of the most versatile panel mount computers available on the market. |
| Memory Technology | DDR3L SDRAM |
| Operating System | No |
| Package Contents | - Industrial Grade All-In-One PC
- AC Adapter
- Capacitive Stylus Pen
|
| Packaged Quantity | 1 |
| Processor model | J1900 |
| Processor Speed | 2.42 GHz |
| Processor Type | Celeron |
| Product color | Black |
| Product Name | Industrial Grade All-In-One PC |
| Product Series | M |
| Product Type | All-in-One Computer |
| Screen Mode | Full HD |
| Screen Resolution | 1920 x 1080 |
| Screen Size | 11.6" |
| Total Number of USB Ports | 4 |
| Weight (Approximate) | 5 lb |
| Width | 8.9" |
