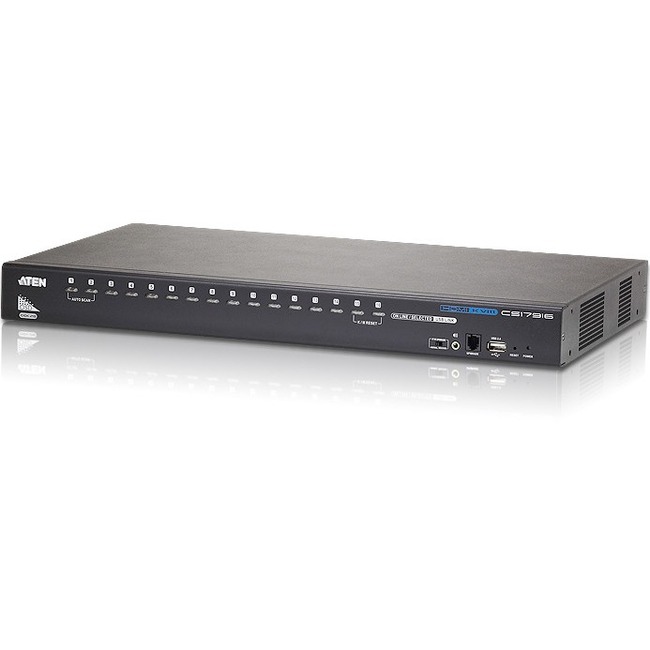

ATEN 16-Port USB HDMI KVM Switch-TAA Compliant
| $770.13 Retail $1,619.00 |
- One USB console controls up to sixteen HDMI interface computers and two additional USB 2.0 devices
- HDMI compatible
- Cascadable to two levels-control up to 256 computers
- Multi-Display feature - stack up to eight CS17916 units and display video from up to eight monitors(dual display/triple display/quad display/multi-display)
- 2-port USB 2.0 hub built in
- Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
- Independent switching of KVM and USB focus
- OSD Backup/Restore feature-enables the administrator to back up the switch's configuration and user profile information
- Firmware upgradable
- Video DynaSync™ - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
16 Computer(s) - 1 Local User(s) - 1920 x 1200 - 19 x USB - 17 x HDMI
Product Specifications
| Number of HDMI Ports | 17 |
| Brand Name | ATEN |
| Country of origin | Taiwan |
| Depth | 17.2" |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Graphic Mode | WUXGA |
| Height | 1.7" |
| Input voltage | 5 V DC |
| Manufacturer | ATEN Technology Inc |
| Manufacturer Part Number | CS17916 |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Marketing Information | The CS17916 16-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 16 HDMI computers from a single USB keyboard USB mouse and monitor console. |
| Marketing Information | The CS17916 16-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 16 HDMI computers from a single USB keyboard USB mouse and monitor console. |
| Maximum Video Resolution | 1920 x 1200 |
| Microphone | Yes |
| Minimum Scan Interval | 1 Second |
| Number of Computers Supported | 16 |
| Number of USB Ports | 19 |
| Package Contents |
|
| Packaged Quantity | 1 |
| Platform Supported | PC |
| Platform Supported | Sun |
| Platform Supported | Linux |
| Platform Supported | Mac |
| Product Name | 16-Port USB HDMI KVM Switch |
| Product Type | KVM Switchbox |
| UPC Alternates | 621102324063 672792005572 |
| Weight (Approximate) | 8.51 lb |
| Width | 10.1" |
