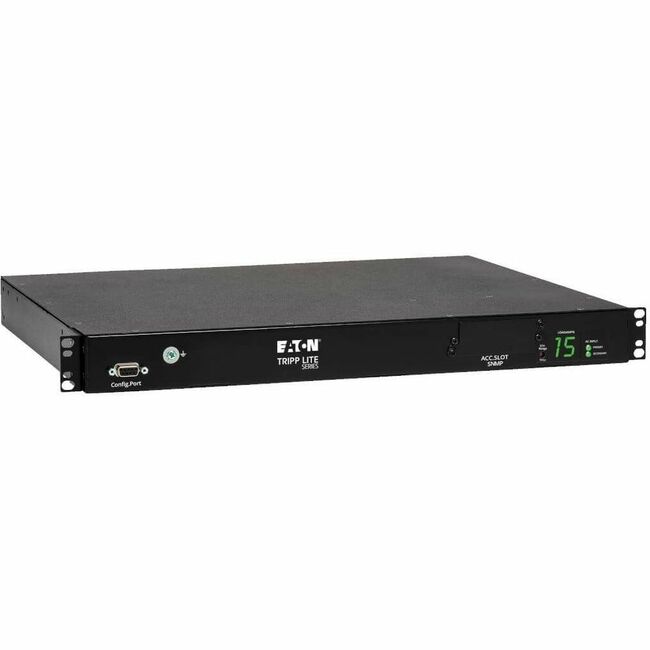

Tripp Lite PDU Metered ATS 2/2.4KW 200/240V 10 C13 2 C14 3.6M Cords 1URM
New
Tripp Lite PDU Metered ATS 2/2.4KW 200/240V 10 C13 2 C14 3.6M Cords 1URM - IEC 60320 C14 - 10 x IEC 60320 C13 - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC - 2.40 kVA - 1U/2U - Horizontal Rackmount
| $444.21 Retail $694.52 |
- Primary and Secondary Inputs for Power Redundancy
- Enables redundant power for network devices with non-redundant power supply configurations
- Dual 3.6 m input cords with IEC-320 C14 plugs connect to separate primary and secondary single-phase power sources
- 10 C13 outlets
- Automatic Transfer Switching
- Dynamic solid-state (TRIAC) automatic transfer switching
- Switches to secondary power source if primary source fails or becomes unstable
- 2-5 ms transfer time ensures uninterrupted operation of connected equipment
- Built-in processor monitors both sources and prevents switching if secondary source is unavailable or of lower quality than primary source
- Digital Load Meter
You may be also interested
$594.27
$869.00
$1,167.88
$1,974.96
$174.51
$300.00
$191.34
$314.50
$3,609.40
$5,000.00
$618.26
$750.01
$77.83
$1,102.53
$1,675.00
$396.48
$929.48
$1,211.00
$946.14
$320.49
$369.95
$7.91
$12.97
$601.43
$949.10
$1,887.78
$3,100.04
$594.27
$869.00
$296.76
$445.54
$1,243.49
$94.12
$139.95
$109.01
$180.00
Tripp Lite PDU Metered ATS 2/2.4KW 200/240V 10 C13 2 C14 3.6M Cords 1URM - IEC 60320 C14 - 10 x IEC 60320 C13 - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC - 2.40 kVA - 1U/2U - Horizontal Rackmount
IEC 60320 C14 - 10 x IEC 60320 C13 - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC - 2.40 kVA - 1U/2U - Horizontal Rackmount
IEC 60320 C14 - 10 x IEC 60320 C13 - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC - 2.40 kVA - 1U/2U - Horizontal Rackmount
Product Specifications
| Mounting Orientation | Horizontal |
| Plug/Connector Detail | 2 x IEC 60320 C14 |
| Power Rating (Watt) | 2400 W |
| Receptacle Detail | 10 x IEC 60320 C13 |
| Brand Name | Tripp Lite |
| Country of origin | Taiwan |
| Depth | 14.4" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 1.7" |
| Input current | 10 A |
| Input voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Limited Warranty | 2 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | PDUMH15HVAT |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | The PDUMH15HVAT 2-2.4kW Single-Phase 200-240V ATS/Metered PDU enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms it mounts in 1U of space in EIA-standard 19-inch racks and features 10 C13 outlets. Dual 3.6-meter input cords with IEC-320 C14 plugs connect to separate primary and secondary single-phase power sources in a nominal voltage range from 200-240V. Plug lock inserts prevent cords from accidental disconnection. The PDUMH15HVAT constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 2-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption. Built-in slot supports the optional SNMPWEBCARD and WEBCARDLX (sold separately) which turn the PDUMH15HVAT into a switched PDU by allowing remote access to the PDU for power monitoring configuration outlet control and notifications via web browser SSH telnet or SNMP. Digital ammeter monitors total output current. LEDs display outlet on/off status and input power status on primary and secondary inputs. |
| Mount Type | Rack-mountable |
| Output voltage | 240 V AC |
| Output voltage | 220 V AC |
| Output voltage | 200 V AC |
| Output voltage | 208 V AC |
| Package Contents |
|
| Packaged Quantity | 1 |
| Plug/Connector Type | IEC 60320 C14 |
| Product Name | PDUMH15HVAT 10-Outlet PDU |
| Product Type | PDU |
| Protection Type | Overload Protection |
| Rack Height | 1U/2U |
| Receptacle Type | IEC 60320 C13 |
| UPC Alternates | 037332197900 |
| Weight (Approximate) | 10.32 lb |
| Width | 17.3" |
