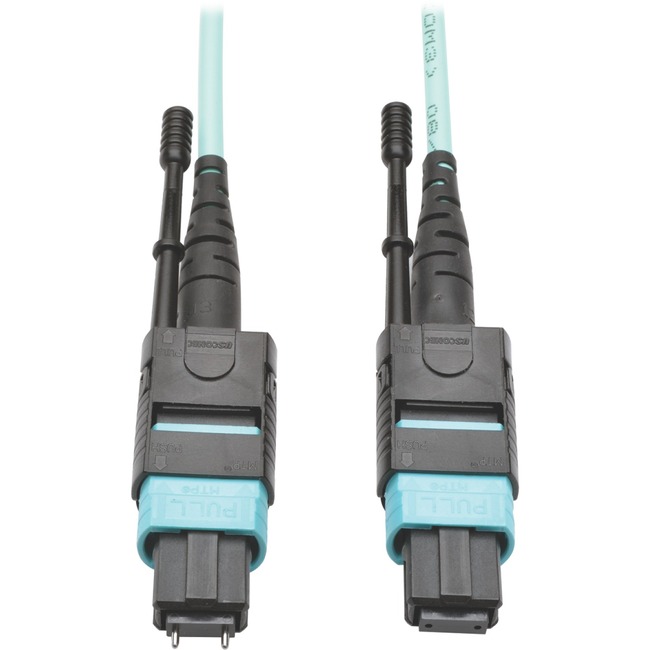

Tripp Lite 5M MTP/MTO Multimode Cable 12 Fiber 40 GbE OM3 Aqua M/F 16ft 16' 5 Meter
New
Tripp Lite 5M MTP/MTO Multimode Cable 12 Fiber 40 GbE OM3 Aqua M/F 16ft 16' 5 Meter - 16.40 ft Fiber Optic Network Cable for Network Device - First End: 1 x MTP Male Network - Second End: 1 x MPO Female Network - 40 Gbit/s - Patch Cable - 50/125 µm - Aqua
| $219.98 Retail $344.00 |
- Supports speeds up to 40 GbE
- Push/pull tab connectors install/remove with one hand
- 12-fiber MTP/MPO connectors with 12x density of SC connectors
- 100% tested for low insertion loss and back reflection
- 50/125 duplex glass fiber construction
You may be also interested
$13.13
$24.46
$7.07
$13.99
$14.77
$19.00
$1.66
$2.99
$22.89
$44.99
$1,269.28
$10.00
$38.92
$37.99
$1.70
$6.99
$170.25
$10.00
$16.45
$31.60
$8.21
$12.99
$9.67
$25.79
$10.73
$34.00
$2.23
$3.99
$26.49
$10.00
$204.47
$262.00
$7.83
$8.45
$35.35
$54.88
$14.48
$24.50
$3.47
$4.00
Tripp Lite 5M MTP/MTO Multimode Cable 12 Fiber 40 GbE OM3 Aqua M/F 16ft 16' 5 Meter - 16.40 ft Fiber Optic Network Cable for Network Device - First End: 1 x MTP Male Network - Second End: 1 x MPO Female Network - 40 Gbit/s - Patch Cable - 50/125 µm - Aqua
16.40 ft Fiber Optic Network Cable for Network Device - First End: 1 x MTP Male Network - Second End: 1 x MPO Female Network - 40 Gbit/s - Patch Cable - 50/125 µm - Aqua
16.40 ft Fiber Optic Network Cable for Network Device - First End: 1 x MTP Male Network - Second End: 1 x MPO Female Network - 40 Gbit/s - Patch Cable - 50/125 µm - Aqua
Product Specifications
| Brand Name | Tripp Lite |
| Cable Characteristic | Patch Cable |
| Cable length | 16.40 ft |
| Cable type | Fiber Optic |
| Color | Aqua |
| Connector on First End | MTP Male Network |
| Connector on First End | 1 x MTP Male Network |
| Connector on Second End | 1 x MPO Female Network |
| Connector on Second End | MPO Female Network |
| Core/Cladding Diameter | 50/125 µm |
| Country of origin | China |
| Data transfer rate | 40 Gbit/s |
| Device Supported | Network Device |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Fiber Optic Mode | Multi-mode |
| Limited Warranty | Lifetime |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | N842-05M-12-MF |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | The N842-05M-12-MF MTP/MPO Multimode Patch Cable is a 5-meter patch cable that supports 40 Gb Ethernet speeds and is designed for high-density connections between network equipment in telecommunication rooms and data centers. With one male and one female MTP/MPO connector this OM3-rated multimode fiber optic cable allows IT professionals to extend the length of their connection and eliminates the need for long fan-out cables or individual long duplex cable runs. MTP / MPO Extension cables used with Tripp Lite High Density patching systems in particular MTP/MPO Feed-Through Cassettes such as Tripp Lite N484-12M12. The 12-fiber MTP/MPO connectors are about the same size as SC connectors but are 12 times denser freeing up circuit card and rack space for other cables. The cable has documented insertion loss and back reflection testing on every connector and attenuation loss that meets or exceeds current standards. Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand. Backward compatible with existing 50/125 fiber the aqua-colored N842-05M-12-MF has 50/125 duplex(zipcord) fiber made from glass as well as a plenum-rated jacket for connecting high-speed network components in ceilings walls and ducts. The laser-optimized multimode fiber(LOMMF) cable meets the most current industry standards including IEEE 802.3ae and TIA LOMMF. |
| Product Name | Fiber Optic Network Cable |
| Product Type | Network Cable |
| UPC Alternates | 037332191069 |
Material Safety Data Sheet
A Material Safety Data Sheet (MSDS) is a document that contains information on the potential hazards (health, fire, reactivity and environmental) and how to work safely with the chemical product.
Sorry this product does not have any reviews at this time.
