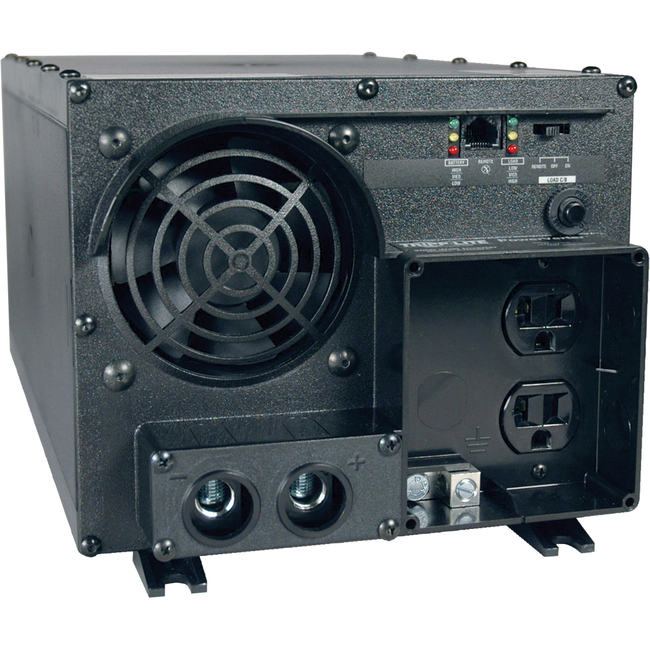

Tripp Lite Industrial Inverter 2400W 24V DC to 120V AC RJ45 2 Outlets 5-15R
| $796.42 Retail $1,168.96 |
- Designed for heavy duty and motor loads
- 24V DC input; 120V AC output; 2 outlets
- 2400W continuous output
- Peak surge output: OverPower (up to 1 hour)—3600W; Double-Boost (up to 10 seconds)—4800W
- High-efficiency power conversion
- Automatic overload protection
24V DC - 120V AC - Continuous Power:2400W
Product Specifications
| Continuous Power Load | 2400 W |
| Continuous Power Load | 2400 W |
| Peak Power Load | 4800 W |
| Peak Power Load | 4800 W |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Brand Name | Tripp Lite |
| Brand Name | Tripp Lite |
| Country of origin | China |
| Country of origin | China |
| Height | 7.3" |
| Height | 7.3" |
| Input voltage | 24 V DC |
| Input voltage | 24 V DC |
| Input Voltage Range | 20 V DC - 30 V DC |
| Input Voltage Range | 20 V DC - 30 V DC |
| Limited Warranty | 1 Year |
| Limited Warranty | 1 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | PV2400FC |
| Manufacturer Part Number | PV2400FC |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Continuously supplies up to 2400W of 120V AC power to 2 AC outlets from any 24V battery or automotive DC source. Frequency control locks AC output at 60Hz for operating stability of motor loads. Includes a set of high current DC input terminals for simple permanent installation. Highly reliable large transformer design specializes in powering motors and other inductive loads with high-current startup needs. |
| Marketing Information | Continuously supplies up to 2400W of 120V AC power to 2 AC outlets from any 24V battery or automotive DC source. Frequency control locks AC output at 60Hz for operating stability of motor loads. Includes a set of high current DC input terminals for simple permanent installation. Highly reliable large transformer design specializes in powering motors and other inductive loads with high-current startup needs. |
| Maximum Frequency | 60 Hz |
| Maximum Frequency | 60 Hz |
| Output voltage | 120 V AC |
| Output voltage | 120 V AC |
| Package Contents |
|
| Package Contents |
|
| Plug/Connector Type | Hardwired |
| Plug/Connector Type | Hardwired |
| Product color | Black |
| Product color | Black |
| Product Line | PowerVerter |
| Product Line | PowerVerter |
| Product Name | PowerVerter Plus PV2400FC 2400W Power Inverter |
| Product Name | PowerVerter Plus PV2400FC 2400W Power Inverter |
| Product Series | Plus |
| Product Series | Plus |
| Product Type | Power Inverter |
| Product Type | Power Inverter |
| Receptacles | 2 x NEMA 5-15/20R |
| Receptacles | 2 x NEMA 5-15/20R |
| UPC Alternates | 037332042200 |
| UPC Alternates | 037332042200 |
| Weight (Approximate) | 40.20 lb |
| Weight (Approximate) | 40.20 lb |
| Width | 8.5" |
| Width | 8.5" |
