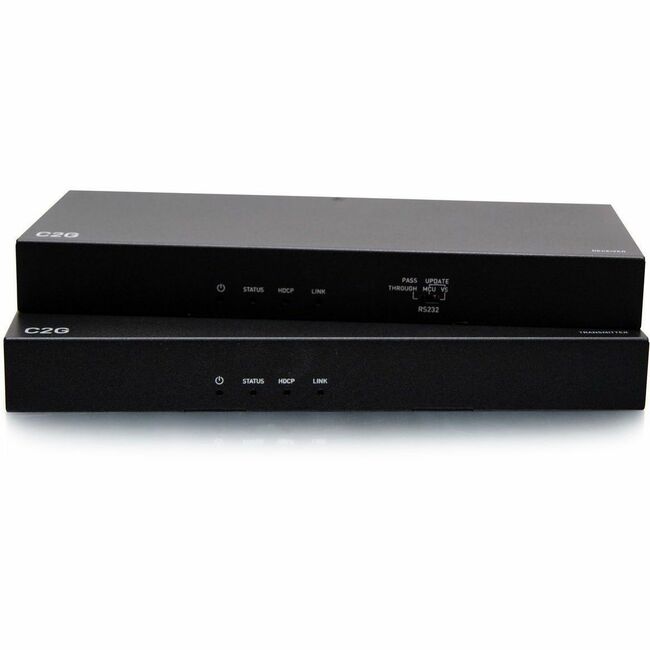

C2G Video Extender Transmitter/Receiver
New
C2G Video Extender Transmitter/Receiver - 1 Input Device - 1 Output Device - 230 ft Range - 2 x Network (RJ-45) - 5 x USB - 1 x HDMI In - 1 x HDMI Out - 1080p - 4K - Twisted Pair - Category 7
| $532.16 Retail $718.99 |
- Extend 4K at 60Hz (4:2:0) up to 130ft and 1080p at 60Hz up to 230ft with Cat 6a cable
- Extend 4K at 60Hz (4:2:0) up to 115ft and 1080p at 60Hz up to 200ft with Cat 5e/6 cable
- HDCP 2.2 compliant, to create a secure connection between the source and display
- HDBaseT Chipset VS210, for simpler HDBaseT installations
- One-way analog audio pass through from wall-plate transmitter to receiver
- Supports USB 2.0 pass through over HDBT up to 230ft, connecting up to 4 USB devices to the receiver
- Supports CEC switch command sent by wall-plate
- One-way Power over HDBaseT (PoH), so that the wall plate can be powered by receiver
You may be also interested
$127.65
$189.99
$247.59
$349.00
$336.44
$438.00
$237.91
$321.99
$127.94
$129.95
$127.94
$129.95
$67.97
$74.95
$772.20
$999.00
$103.56
$159.99
$14.31
$49.99
$232.15
$249.95
$130.57
$349.99
C2G Video Extender Transmitter/Receiver - 1 Input Device - 1 Output Device - 230 ft Range - 2 x Network (RJ-45) - 5 x USB - 1 x HDMI In - 1 x HDMI Out - 1080p - 4K - Twisted Pair - Category 7
1 Input Device - 1 Output Device - 230 ft Range - 2 x Network (RJ-45) - 5 x USB - 1 x HDMI In - 1 x HDMI Out - 1080p - 4K - Twisted Pair - Category 7
1 Input Device - 1 Output Device - 230 ft Range - 2 x Network (RJ-45) - 5 x USB - 1 x HDMI In - 1 x HDMI Out - 1080p - 4K - Twisted Pair - Category 7
Product Specifications
| Receiver Weight (Approximate) | 1.06 lb |
| Transmitter Depth | 3.55" |
| Transmitter Height | 0.98" |
| Transmitter Weight (Approximate) | 15.52 oz |
| Transmitter Width | 8.27" |
| Connectivity technology | Wired |
| Country of origin | China |
| Graphics Modes | 4K |
| Manufacturer | C2G |
| Manufacturer Part Number | C2G31013 |
| Manufacturer Website Address | http://www.cablestogo.com |
| Marketing Information | The HDMI HDBaseT + 3.5mm USB-B to A and RS232 over Cat Extender Box Transmitter to Box Receiver - 4k 60hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where USB must be extended alongside HDMI video and audio to interactive whiteboards and displays in conference rooms classrooms lecture halls and many other installation needs that are far beyond the length limitations of standard HDMI cabling. The transmitter extends HDMI and high speed USB 2.0 signals over a single Cat5e Cat6 or Cat6a network patch cable. Extend 4K HDMI up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances extend 4K HDMI or up to 130 feet using a Cat6a cable. This HDMI HDBaseT Extender is HDCP 2.2 compliant making sure that the connection between the source and display is secure. One-way analog audio pass through is supported from the transmitter to the receiver. High speed USB 2.0 pass through is supported over HDBaseT up to 230ft for KVM control of devices such as USB cameras keyboards mice etc. With PoH support the transmitter sends power to both the transmitter and the receiver so no additional power adapter is required allowing for greater flexibility in installations. Support this HDBaseT system that is already deployed in the field by upgrading firmware through the RS232 port. |
| Maximum Operating Distance | 230 ft |
| Media Type Supported | Twisted Pair |
| Number of HDMI Inputs | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 5 |
| Package Contents |
|
| Product color | Black |
| Product Type | Video Extender Transmitter/Receiver |
| Supported video modes | 1080p |
| Twisted Pair Cable Standard | Category 7 |
| UPC Alternates | 757120310136 |
| USB | Yes |
