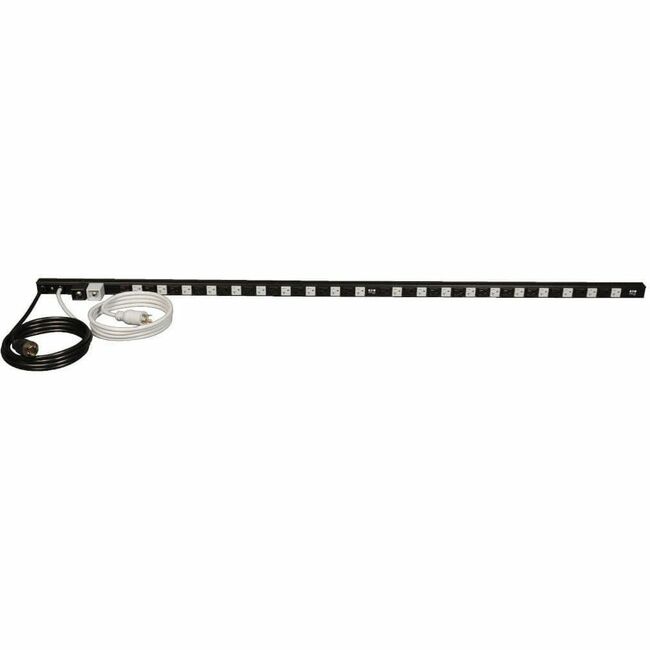

Tripp Lite PDU Basic Dual Circuit 120V 20A 5-15/20R 40 Outlet L5-20P 0URM
New
Tripp Lite PDU Basic Dual Circuit 120V 20A 5-15/20R 40 Outlet L5-20P 0URM - 40 x NEMA 5-15/20R - 4.8kW - Zero U Vertical Rackmount
| $307.12 Retail $451.16 |
- Basic single phase dual circuit 40A 120V PDU
- Functions as two independent 20A PDU systems in a single housing
- Two 10 ft. / 3m NEMA L5-20P / 5-20P compatible inputs
- 40 NEMA 5-15/20R outlets (20 per circuit)
You may be also interested
$1,789.32
$2,725.00
$377.19
$600.92
$171.82
$280.00
$472.92
$597.00
$191.34
$314.50
$2,591.78
$3,590.00
$395.29
$499.00
$218.70
$299.95
$11.32
$1,559.95
$963.39
$1,424.00
$185.85
$290.16
$956.31
$1,244.00
$2,844.65
$3,591.00
$639.82
$1,050.20
$133.13
$452.24
$2,109.08
$3,070.00
$1,424.86
$1,449.95
$425.11
$715.10
$347.94
$570.96
Tripp Lite PDU Basic Dual Circuit 120V 20A 5-15/20R 40 Outlet L5-20P 0URM - 40 x NEMA 5-15/20R - 4.8kW - Zero U Vertical Rackmount
40 x NEMA 5-15/20R - 4.8kW - Zero U Vertical Rackmount
40 x NEMA 5-15/20R - 4.8kW - Zero U Vertical Rackmount
Product Specifications
| Mounting Orientation | Vertical |
| PDU Type | Basic |
| Plug/Connector Detail | 2 x NEMA L5-20P |
| Power Rating (Watt) | 3800 W |
| Receptacle Detail | 40 x NEMA 5-15/20R |
| Brand Name | Tripp Lite |
| Country of origin | China |
| Depth | 1.5" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 3" |
| Input voltage | 120 V AC |
| Limited Warranty | 2 Year Lifetime |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | PDU40TDUAL |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | The PDU40TDUAL 3.8kW Single-Phase Dual-Circuit 120V Basic PDU works as two independent PDUs in a single housing perfect for networking telecom security audio/video and sound reinforcement applications. Ideal for high-density network equipment with dual redundant input cables it features 40 NEMA 5-15/20R outlets split evenly into two separate power circuits. Each power circuit including its input plug power cord breaker and outlets is color-coded black or gray for easy identification. Both 10-foot power cords feature NEMA L5-20P input plugs and come with optional adapters to convert them to NEMA 5-20P plugs which are not color-coded. Connect the plugs to separate mains input power sources generators or protected UPS systems to distribute AC power to connected equipment.The switchless design prevents an accidental shutdown which could lead to costly downtime. Dual 20A circuit breakers protect connected equipment from dangerous overloads. The 70-inch all-metal housing supports toolless 0U vertical mounting in EIA-standard 19-inch racks as well as on a wall or workbench or under a counter with user-supplied hardware. |
| Mount Type | Rack-mountable |
| Package Contents |
|
| Plug/Connector Type | NEMA L5-20P |
| Product Name | PDU40TDUAL PDU Basic DUAL 20A 40 Outlet |
| Product Type | PDU |
| Protection Type | Overload Protection |
| Receptacle Type | NEMA 5-15/20R |
| UPC Alternates | 037332128409 803982805652 818289682547 993246546640 |
| Weight (Approximate) | 8 lb |
| Width | 65" |
