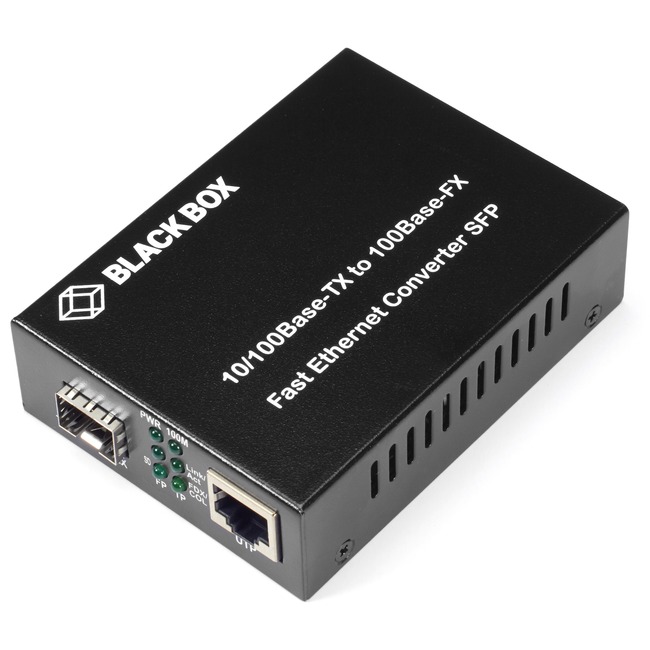

Black Box Transceiver/Media Converter
| $15.59 Retail $61.15 |
- Convert copper-based network via fiber up to a maximum distance of 60 km through the use of SFP's
- Fully compliant with IEEE802.3, IEEE802.3U, 10/100BASE-TX, 100BASE-FX
- Use as a standalone unit or with the available chassis (LHGC-RACK).
- Know operation status through LEDs on front panel
- One RJ45 port and one SFP slot
- Flow Control: IEEE802.3x flow control for full duplex mode.
- Link fault pass-through functionality
1 x Network (RJ-45) - Single-mode, Multi-mode - Fast Ethernet - 10/100Base-TX, 100Base-FX - 1 x Expansion Slots - SFP - 1 x SFP Slots - Standalone
Product Specifications
| Fiber Mode Supported | Multi-mode |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Standard | 50/125 µm |
| Fiber Optic Cable Standard | 62.5/125 µm |
| Fiber Optic Cable Standard | 9/125 µm |
| Fiber Optic Cable Standard | 10/125 µm |
| Fiber Optic Cable Standard | 8.3/125 µm |
| Maximum Distance Supported | 37.28 Mile |
| Additional Information | Can be used as a standalone unit or with the available chassis (LHGC-RACK). |
| Brand Name | Black Box |
| Country of origin | China |
| Depth | 3.7" |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Expansion Slot Type | SFP |
| Form factor | Standalone |
| Height | 1" |
| Limited Warranty | 3 Year |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LHC210A |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | Extend copper via fiber Get your copper-based network where it needs to go. This media converter lets you extend your copper-based network via fiber to a maximum distance of 60 km through the use of an SFP providing your deployment with the connectivity it needs. Support multiple standards Meets whatever standard you need it to. It's fully compliant with IEEE802.3 IEEE802.3U 10/100BASE-TX and 100BASE-FX. Straightforward installation The media converter can be installed into a standard converter chassis. The installation is quick and easy. Status updates Know how your media converter is performing. Operation status can be locally monitored through a set of diagnostic LEDs located on the front panel. Know link media issues immediately Features helpful Link Fault Pass-Through (LFP) functionality. LFP immediately alarms administrators to the problem with the link media and provides an efficient solution to monitor the net. |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100Base-TX |
| Network Technology | 100Base-FX |
| Package Contents | |
| Packaged Quantity | 1 |
| Power source | AC Adapter |
| Product Type | Transceiver/Media Converter |
| UPC Alternates | 822088130949 995478823803 |
| Weight (Approximate) | 11.20 oz |
| Width | 2.7" |
