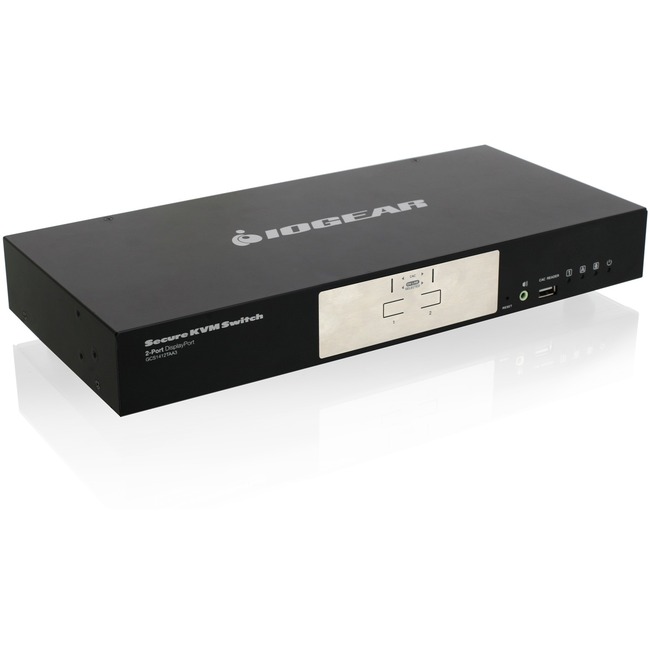

IOGEAR 2-Port DisplayPort Secure KVM Switch (TAA)
| $66.44 Retail $299.95 |
- NIAP-Certified PP3.0
- Validated to Protection Profile v3.0 for Peripheral Sharing Switches
- CAC & Biometrics Support
- Dedicated peripheral port for authorized CAC readers only and supported Biometrics readers1
- 8-Port Dual View Dual-Link DVI Secure KVM Switch
- One USB console controls 8 secure computers on 2 displays
- Superior 4K UHD Video Resolution
- Dual-Link Resolution: 2560 x 1600; 4K UHD Resolution: 3840 x 2160 @30Hz2
- Port Selection via Push-Button for Enhanced Security
- Keyboard restrictions - OSD & hotkey methods are not allowed
2 Computer(s) - 1 Local User(s) - 3840 x 2160 - 2 x PS/2 Port - 7 x USB - Rack-mountable - 3 x DisplayPort - TAA Compliant
Product Specifications
| Number of DisplayPorts | 3 |
| Brand Name | IOGEAR |
| Country of origin | Taiwan |
| Depth | 6.4" |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form factor | Rack-mountable |
| Height | 1.7" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Input Voltage Range | 120V AC to 230V AC |
| Limited Warranty | 4 Year |
| Manufacturer | IOGEAR Inc |
| Manufacturer Part Number | GCS1412TAA3 |
| Manufacturer Website Address | http://www.iogear.com |
| Marketing Information | 2-Port Secure DisplayPort KVM Computer Switch - Protection Profile 3.0 IOGEAR's 2-Port DisplayPort Secure KVM Switch is NIAP-certified and compliant with PP3.0 (Protection Profile for Peripheral Sharing Switch version 3.0) requirements satisfying the latest security requisites set by the U.S. Department of Defense for peripheral sharing switches. Common criteria compliance ensures maximum information security while sharing a single set of approved HIDs - keyboards mice speakers CAC readers and Microsoft Biometric Readers - between multiple computers. Conformity with Protection Profile v3.0 certifies that non-approved USB peripherals will be rejected and cannot be connected to the Secure KVM providing high-level security protection and data safekeeping. Active Tamper-Proof System The IOGEAR Secure KVM Switch's hardware security is comprised of tamper-evident seals active chassis intrusion detection and tamper-proof hardware. Embedded software security allows administrators to grant controlled USB port access for keyboards mice and other devices while ignoring commands from non-HIDs when switching between ports.The onboard software restricts mouse and hotkey commands while clearing the keyboard's buffer when switching ports while ensuring data travels isolated on each port preventing exposure. With the combination of physical and software security IOGEAR Secure KVM series consolidates multiple workstations with varying security classification levels using one keyboard monitor and mouse (KVM) console. Superior Video Quality The 2-Port DisplayPort Secure KVM supports a single view display and superior 4K Ultra-HD resolutions to 3840 x 2160 @ 30Hz. For a variety of single or dual-view display connections including DVI HDMI and DisplayPort interfaces see the Secure KVM selector. |
| Marketing Information | 2-Port Secure DisplayPort KVM Computer Switch - Protection Profile 3.0 IOGEAR's 2-Port DisplayPort Secure KVM Switch is NIAP-certified and compliant with PP3.0 (Protection Profile for Peripheral Sharing Switch version 3.0) requirements satisfying the latest security requisites set by the U.S. Department of Defense for peripheral sharing switches. Common criteria compliance ensures maximum information security while sharing a single set of approved HIDs - keyboards mice speakers CAC readers and Microsoft Biometric Readers - between multiple computers. Conformity with Protection Profile v3.0 certifies that non-approved USB peripherals will be rejected and cannot be connected to the Secure KVM providing high-level security protection and data safekeeping. Active Tamper-Proof System The IOGEAR Secure KVM Switch's hardware security is comprised of tamper-evident seals active chassis intrusion detection and tamper-proof hardware. Embedded software security allows administrators to grant controlled USB port access for keyboards mice and other devices while ignoring commands from non-HIDs when switching between ports.The onboard software restricts mouse and hotkey commands while clearing the keyboard's buffer when switching ports while ensuring data travels isolated on each port preventing exposure. With the combination of physical and software security IOGEAR Secure KVM series consolidates multiple workstations with varying security classification levels using one keyboard monitor and mouse (KVM) console. Superior Video Quality The 2-Port DisplayPort Secure KVM supports a single view display and superior 4K Ultra-HD resolutions to 3840 x 2160 @ 30Hz. For a variety of single or dual-view display connections including DVI HDMI and DisplayPort interfaces see the Secure KVM selector. |
| Maximum Video Resolution | 3840 x 2160 |
| Number of PS/2 Ports | 2 |
| Number of USB Ports | 7 |
| Package Contents |
|
| Packaged Quantity | 1 |
| Product Name | 2-Port DisplayPort Secure KVM Switch (TAA) |
| Product Type | KVM Switchbox |
| UPC Alternates | 881317516220 |
| Weight (Approximate) | 3.70 lb |
| Width | 13.1" |
