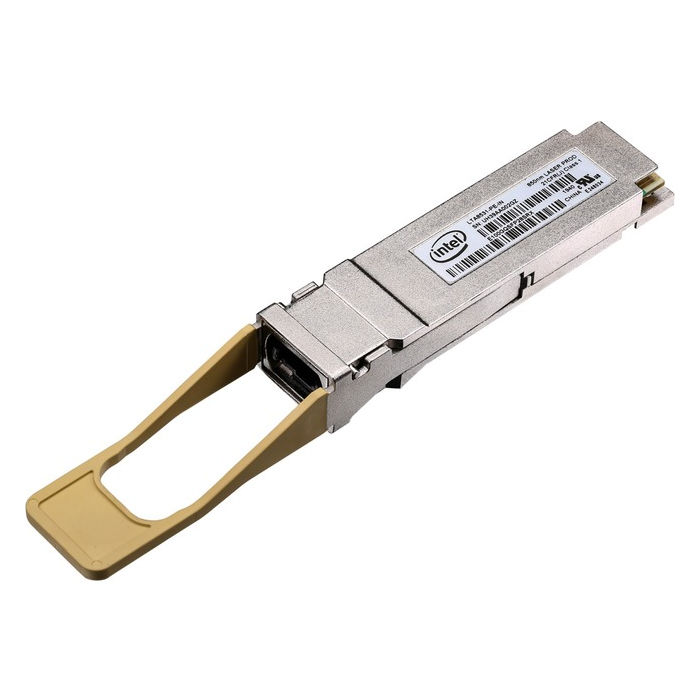

Intel QSFP28 Module
| $119.16 Retail $369.33 |
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- With its thicker diameter to carry the light of multiple wavelengths, multi-mode fiber optic cable supports the high bandwidth to carry more information with greater fidelity
- Provides high performance and flexible solution with 100 Gigabit Ethernet connectivity
- With 100GBase-SR4 technology, get up to 100Gbps data transfer rate over optical fiber cable
For Optical Network, Data Networking - 1 x 100GBase-SR4 Network - Optical Fiber - Multi-mode - 100 Gigabit Ethernet - 100GBase-SR4 - Hot-pluggable
Product Specifications
| Fiber Mode Supported | Multi-mode |
| Fiber Mode Supported | Multi-mode |
| Interfaces/Ports Details | 1 x 100GBase-SR4 Network |
| Interfaces/Ports Details | 1 x 100GBase-SR4 Network |
| Maximum Distance Supported | 328.08 ft |
| Application/Usage | Optical Network |
| Application/Usage | Optical Network |
| Application/Usage | Data Networking |
| Application/Usage | Data Networking |
| Brand Name | Intel |
| Brand Name | Intel |
| Compatibility | MSA Compliant |
| Compatibility | MSA Compliant |
| Environmental Certification | RoHS 2 |
| Environmentally Friendly | Yes |
| Ethernet Technology | 100 Gigabit Ethernet |
| Ethernet Technology | 100 Gigabit Ethernet |
| Form factor | Hot-pluggable |
| Form factor | Hot-pluggable |
| Manufacturer | Intel Corporation |
| Manufacturer | Intel Corporation |
| Manufacturer Part Number | E100GQSFP28SRX |
| Manufacturer Part Number | E100GQSFP28SRX |
| Manufacturer Website Address | http://www.intel.com |
| Manufacturer Website Address | http://www.intel.com |
| Marketing Information | Intel® Ethernet QSFP28 Optic delivers high-performing computing interconnect for deployments of 100GbE | Overview Intel® Ethernet QSFP28 Optic is an excellent choice for up to 100 meter reach in multimode fiber systems for high-speed communications equipment. Ideal for short-range multi-lane data communication and interconnects applications the 100GbE QSFP28 SR4 transceiver is a high-performing module for SR optical links. There are four independent transmit and receive channels each capable of 25Gbps operation for an aggregate data rate of 100Gbps up to 100 meters over OM4 MMF. When used with Intel® Ethernet Network Adapters with QSFP28 connectivity these optics provide interoperability and secure connections for virtualization high-speed networking and consistently reliable performance. Extended case operating temperature allows for system flexibility to support a range of requirements. |
| Marketing Information | Intel® Ethernet QSFP28 Optics are an excellent choice for fiber systems in high-speed communications equipment. Both short range and long-range transceiver modules are available for maximum customer flexibility. The extended case operating temperature allows customers to support a range of server requirements. These 100GbE optical transceivers come integrated with four independent transmit and receive channels each capable of 25GbE operation for an aggregate data rate of 100GbE. The QSFP28 SR4 transceiver is a high-performing module for SR optical links over OM4 MMF and is ideal for short-range multi-lane data communication and interconnects applications. The QSFP28 LR4 module is designed for extended reach and supports links up to 10km of single mode fiber. When used with Intel® Ethernet Network Adapters with QSFP28 connectivity these optics provide interoperability and secure connections for virtualized platforms high-speed networking and consistently reliable performance. |
| Marketing Information | Overview Intel® Ethernet QSFP28 Optics are an excellent choice for fiber systemsin high-speed communications equipment. Both short range andlong-range transceiver modules are available for maximum customerflexibility. The extended case operating temperature allows customersto support a range of server requirements. When used with Intel® Ethernet Network Adapters with QSFP28connectivity these optics provide interoperability and secureconnections for virtualized platforms high-speed networking andconsistently reliable performance. |
| Marketing Information | Intel® Ethernet QSFP28 Optic delivers high-performing computing interconnect for deployments of 100GbE | Overview Intel® Ethernet QSFP28 Optic is an excellent choice for up to 100 meter reach in multimode fiber systems for high-speed communications equipment. Ideal for short-range multi-lane data communication and interconnects applications the 100GbE QSFP28 SR4 transceiver is a high-performing module for SR optical links. There are four independent transmit and receive channels each capable of 25Gbps operation for an aggregate data rate of 100Gbps up to 100 meters over OM4 MMF. When used with Intel® Ethernet Network Adapters with QSFP28 connectivity these optics provide interoperability and secure connections for virtualization high-speed networking and consistently reliable performance. Extended case operating temperature allows for system flexibility to support a range of requirements. |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Optical Fiber |
| Network Technology | 100GBase-SR4 |
| Network Technology | 100GBase-SR4 |
| Package type | Retail |
| Package type | Retail |
| Product Name | QSFP28 Module |
| Product Name | QSFP28 Module |
| Product Name | Intel Ethernet QSFP28 Optic |
| Product Type | QSFP28 |
| Product Type | QSFP28 |
| Total Number of Ports | 1 |
| Total Number of Ports | 1 |
| UPC Alternates | 735858426336 |
| UPC Alternates | 675901701082 735858426336 |
| UPC Alternates | 675901701082 735858426336 |
