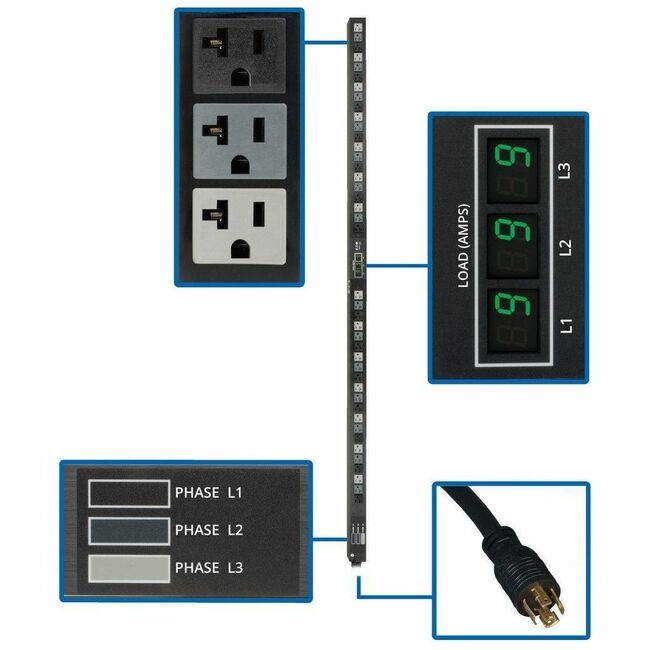

Tripp Lite PDU 3-Phase Metered 120V 5.7 kW 42 5-15/20R L21-20P 0URM
| $119.91 Retail $750.68 |
- Metered 5.7kW 3 Phase 120V output PDU; 70 in. / 178cm 0U vertical rackmount
- Reports load level per-phase via built in current meters
- NEMA L21-20P (3P+N+E) 208V 3 phase input; 6 ft. / 1.8m line cord
- 42 NEMA 5-15/20R outlets (120V), Toolless button-mount installation; cord retention brackets included
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
42 x NEMA 5-15/20R - 5.70 kVA - Vertical Rackmount, Toolless-mount
Product Specifications
| Mounting Orientation | Vertical |
| Power Rating (Watt) | 5700 W |
| Receptacle Detail | 42 x NEMA 5-15/20R |
| Brand Name | Tripp Lite |
| Country of origin | Taiwan |
| Depth | 2.2" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 70" |
| Input voltage | 230 V AC |
| Limited Warranty | 2 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | PDU3MV6L2120LV |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. |
| Mount Type | Rack-mountable |
| Output voltage | 120 V AC |
| Package Contents |
|
| Plug/Connector Type | NEMA L21-20P |
| Product Name | 3-Phase Metered PDU |
| Product Series | Metered |
| Product Type | PDU |
| Receptacle Type | NEMA 5-15/20R |
| UPC Alternates | 037332163899 |
| Weight (Approximate) | 12.57 lb |
| Width | 1.9" |
