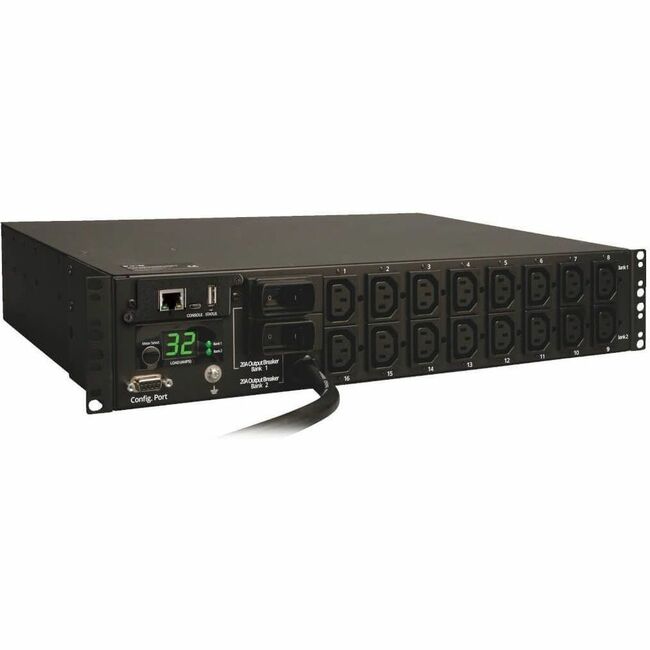

Tripp Lite PDU Switched 230V 32A 7.4kW 16 C13 Outlet IEC-309 Horizontal 2U TAA
| $765.96 Retail $1,244.88 |
- Switched 32A 7.4kW 230V PDU; 2U horizontal rackmount
- LX Platform interface reports voltage, frequency & loading information
- Visual current meter; Reversible housing
- Blue 230V IEC-309 32A (2P+E) input cable
- 16 C13 switched outlets with plug-lock cable retention inserts
- Temperature, humidity and contact closure options
- TAA Compliant
- 2-year limited warranty
16 x IEC 60320 C13 - 7.36 kVA - 2U - Horizontal Rackmount
Product Specifications
| Mounting Orientation | Horizontal |
| Mounting Orientation | Horizontal |
| Power Rating (Watt) | 7400 W |
| Power Rating (Watt) | 7400 W |
| Receptacle Detail | 16 x IEC 60320 C13 |
| Receptacle Detail | 16 x IEC 60320 C13 |
| Additional Information | Plug Type: IEC-309 32A (2P+E) |
| Additional Information | Plug Type: IEC-309 32A (2P+E) |
| Brand Name | Tripp Lite |
| Brand Name | Tripp Lite |
| Country of origin | Taiwan |
| Country of origin | Taiwan |
| Depth | 12.5" |
| Depth | 12.5" |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Height | 3.5" |
| Height | 3.5" |
| Input voltage | 230 V AC |
| Input voltage | 230 V AC |
| Limited Warranty | 2 Year |
| Limited Warranty | 2 Year |
| Management | Protocols:
|
| Management | Protocols:
|
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | PDUMH32HVNET |
| Manufacturer Part Number | PDUMH32HVNET |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Tripp Lite Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on turn off recycle or lock-out power to each individual receptacle monitor site electrical conditions and remotely monitor output power consumption. Built-in LX Platform network management interface. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP and NTP. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is displayed locally via front panel current meter or remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip. |
| Marketing Information | Tripp Lite Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on turn off recycle or lock-out power to each individual receptacle monitor site electrical conditions and remotely monitor output power consumption. Built-in LX Platform network management interface. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP and NTP. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is displayed locally via front panel current meter or remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip. |
| Mount Type | Rack-mountable |
| Mount Type | Rack-mountable |
| Package Contents |
|
| Package Contents |
|
| Product Name | Switched PDUMH32HVNET 16-Outlets 7.4kW PDU |
| Product Name | Switched PDUMH32HVNET 16-Outlets 7.4kW PDU |
| Product Series | Switched |
| Product Series | Switched |
| Product Type | PDU |
| Product Type | PDU |
| Protection Type | Overload Protection |
| Protection Type | Overload Protection |
| Rack Height | 2U |
| Rack Height | 2U |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C13 |
| UPC Alternates | 037332157249 |
| UPC Alternates | 037332157249 |
| Weight (Approximate) | 13.70 lb |
| Weight (Approximate) | 13.70 lb |
| Width | 17.5" |
| Width | 17.5" |
