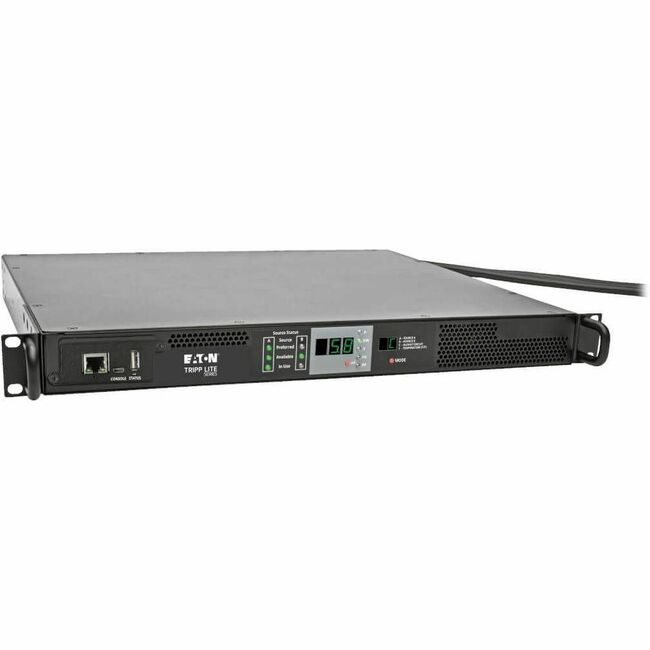

Tripp Lite PDU Monitored Horizontal 5.8kw 208/240V L6-30R 2 L6-30P ATS 1URM
New
Tripp Lite PDU Monitored Horizontal 5.8kw 208/240V L6-30R 2 L6-30P ATS 1URM - NEMA L6-30P - 1 x NEMA L6-30R - 230 V AC - 1URack-mountable
| $1,093.19 Retail $1,589.32 |
- Two single-phase L6-30P inputs with 10 ft. cords
- L6-30R outlet for connecting single device or 0U vertical PDU
- Automatic transfer switching within 1-5 ms
- Built-in LX Platform Network Interface
- Digital LED display for real-time status monitoring
You may be also interested
$1,493.53
$2,452.32
$111.20
$179.95
$426.55
$666.44
$150.91
$140.00
$406.63
$600.00
$115.01
$162.00
$788.83
$959.95
$78.95
$111.00
$13.47
$16.95
$374.52
$39.32
$68.04
$1,033.28
$1,434.00
$133.13
$477.02
$398.45
$503.52
$425.11
$715.10
$1,318.41
$1,825.00
$725.70
$1,007.00
$377.19
$600.92
$103.35
$169.95
Tripp Lite PDU Monitored Horizontal 5.8kw 208/240V L6-30R 2 L6-30P ATS 1URM - NEMA L6-30P - 1 x NEMA L6-30R - 230 V AC - 1URack-mountable
NEMA L6-30P - 1 x NEMA L6-30R - 230 V AC - 1URack-mountable
NEMA L6-30P - 1 x NEMA L6-30R - 230 V AC - 1URack-mountable
Product Specifications
| Phase | Single Phase |
| Phase | Single Phase |
| Plug/Connector Detail | 2 x NEMA L6-30P |
| Plug/Connector Detail | 2 x NEMA L6-30P |
| Power Rating (Watt) | 5800 W |
| Power Rating (Watt) | 5800 W |
| Receptacle Detail | 1 x NEMA L6-30R |
| Receptacle Detail | 1 x NEMA L6-30R |
| Brand Name | Tripp Lite |
| Brand Name | Tripp Lite |
| Country of origin | China |
| Country of origin | China |
| Depth | 14" |
| Depth | 14" |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Height | 1.7" |
| Height | 1.7" |
| Input current | 30 A |
| Input current | 30 A |
| Input voltage | 230 V AC |
| Input voltage | 230 V AC |
| Limited Warranty | 2 Year |
| Limited Warranty | 2 Year |
| Management | Protocols:
|
| Management | Protocols:
|
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | PDUMNH30HVAT |
| Manufacturer Part Number | PDUMNH30HVAT |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | The PDUMNH30HVAT 5.8kW Single-Phase 208/240V ATS/Monitored PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms it mounts in 1U of space in EIA-standard 19-inch racks and features one L6-30R outlet-perfect for connecting a single device or a 0U 208/240V PDU with an L6-30P plug. Dual 10-foot input cords with L6-30P plugs connect to separate primary and secondary single-phase power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption. Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Automated alerts help prevent accidental overloads power loss and downtime. Digital display indicates power availability voltage source A/B input status output load and power factor as well as temperature and humidity conditions with the optional ENVIROSENSE module (sold separately). |
| Marketing Information | The PDUMNH30HVAT 5.8kW Single-Phase 208/240V ATS/Monitored PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms it mounts in 1U of space in EIA-standard 19-inch racks and features one L6-30R outlet-perfect for connecting a single device or a 0U 208/240V PDU with an L6-30P plug. Dual 10-foot input cords with L6-30P plugs connect to separate primary and secondary single-phase power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption. Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Automated alerts help prevent accidental overloads power loss and downtime. Digital display indicates power availability voltage source A/B input status output load and power factor as well as temperature and humidity conditions with the optional ENVIROSENSE module (sold separately). |
| Mount Type | Rack-mountable |
| Mount Type | Rack-mountable |
| Package Contents |
|
| Package Contents |
|
| Plug/Connector Type | NEMA L6-30P |
| Plug/Connector Type | NEMA L6-30P |
| Product Name | PDUMNH30HVAT 5.8kW Single-Phase 208/240V ATS/Monitored PDU |
| Product Name | PDUMNH30HVAT 5.8kW Single-Phase 208/240V ATS/Monitored PDU |
| Product Series | Monitored |
| Product Series | Monitored |
| Product Type | PDU |
| Product Type | PDU |
| Rack Height | 1U |
| Rack Height | 1U |
| Receptacle Type | NEMA L6-30R |
| Receptacle Type | NEMA L6-30R |
| UPC Alternates | 037332184917 818283616678 818283689023 |
| UPC Alternates | 037332184917 818283616678 818283689023 |
| Weight (Approximate) | 15.37 lb |
| Weight (Approximate) | 15.37 lb |
| Width | 16.9" |
| Width | 16.9" |
