Tripp Lite MTP/MPO Parallel Optics Base-8 Fiber Adapter OM4 Polarity A to B
New

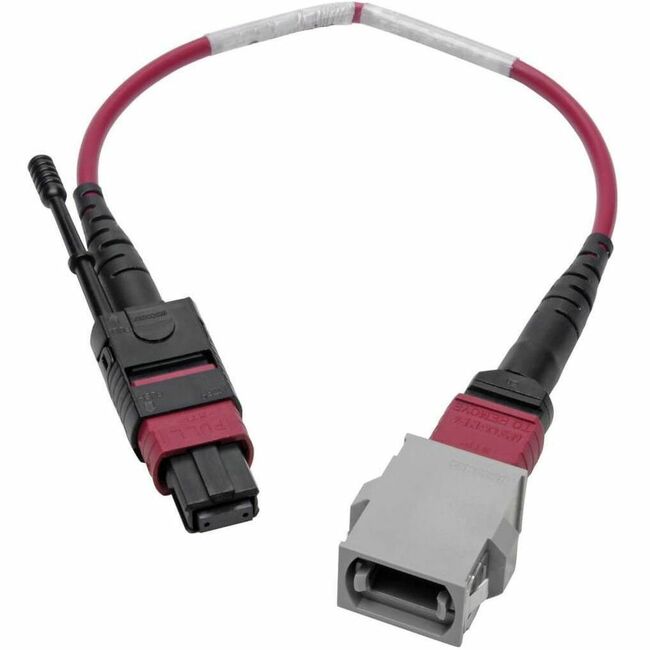

Tripp Lite MTP/MPO Parallel Optics Base-8 Fiber Adapter OM4 Polarity A to B - Fiber Optic for Network Device - 12.50 GB/s - Patch Cable - 8" - 1 x MTP/MPO Male Network - 1 x MTP/MPO Female Network - 50/125 µm - Magenta
| $140.16 Retail $217.60 |
- Supports speeds up to 40 GbE/100 GbE
- Push/pull tab connector installs/removes with one hand
- 12-fiber MTP/MPO connectors
- 100% tested for low insertion loss and back reflection
- 50/125 duplex glass fiber construction
You may be also interested
$2,367.46
$11,000.00
$16.09
$19.99
$2.95
$9.00
$377.90
$640.00
$86.60
$111.00
$16.44
$34.99
$44.50
$57.00
$83.93
$205.00
$4.61
$81.99
$216.62
$210.00
$141.77
$240.00
$89.54
$150.00
$691.03
$1,170.00
$312.96
$530.00
$57.74
$89.00
$5.77
$9.50
$124.28
$210.00
$35.47
$60.00
$8.59
$9.37
$14.99
Tripp Lite MTP/MPO Parallel Optics Base-8 Fiber Adapter OM4 Polarity A to B - Fiber Optic for Network Device - 12.50 GB/s - Patch Cable - 8" - 1 x MTP/MPO Male Network - 1 x MTP/MPO Female Network - 50/125 µm - Magenta
Fiber Optic for Network Device - 12.50 GB/s - Patch Cable - 8" - 1 x MTP/MPO Male Network - 1 x MTP/MPO Female Network - 50/125 µm - Magenta
Fiber Optic for Network Device - 12.50 GB/s - Patch Cable - 8" - 1 x MTP/MPO Male Network - 1 x MTP/MPO Female Network - 50/125 µm - Magenta
Product Specifications
| Brand Name | Tripp Lite |
| Cable Characteristic | Patch Cable |
| Cable length | 8" |
| Cable type | Fiber Optic |
| Color | Magenta |
| Connector on First End | 1 x MTP/MPO Male Network |
| Connector on First End | MTP/MPO Male Network |
| Connector on Second End | MTP/MPO Female Network |
| Connector on Second End | 1 x MTP/MPO Female Network |
| Core/Cladding Diameter | 50/125 µm |
| Country of origin | China |
| Data transfer rate | 100 Gbit/s |
| Device Supported | Network Device |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Limited Warranty | Lifetime |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | N846-08N-A2B |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | he N846-08N-A2B MTP/MPO Parallel Optics Base-8 Migration Fiber Adapter (M/F) is an eight-inch patch cable that supports 40 Gb Ethernet speeds and is designed for high-density connections between network equipment in telecommunication rooms and data centers. It saves you time and money by converting legacy 12-fiber Method A cables to Method B Polarity for compatibility with Parallel Optics fiber mapping in Base-8 40GBASE-SR4 and 100GBASE-SR4 applications. It's colored magenta for instant identification as an OM4 cable. The N846-08N-A2B is ideal for use with high-density feed-through cassettes such as Tripp Lite's N482 and N484 Series. The cable has documented insertion loss and back reflection testing on every connector and attenuation loss that meets or exceeds current standards. The push/pull tab connector makes the cable easy to install and remove with one hand. Backward compatible with existing 50/125 fiber the N846-08N-A2B has 50/125 duplex (zipcord) fiber made from glass as well as a plenum-rated OFNP jacket for connecting network components in drop ceilings walls and ducts. Features OM4-Rated for 40 Gb Ethernet Applications
MTP/MPO Connectors with Push/Pull Tab
Error-Free Signal Transfer
|
| Product Name | N846-08N-A2B Fiber Optic Duplex Patch Network Cable |
| Product Type | Network Cable |
| UPC Alternates | 037332203472 |
Material Safety Data Sheet
A Material Safety Data Sheet (MSDS) is a document that contains information on the potential hazards (health, fire, reactivity and environmental) and how to work safely with the chemical product.
Sorry this product does not have any reviews at this time.
