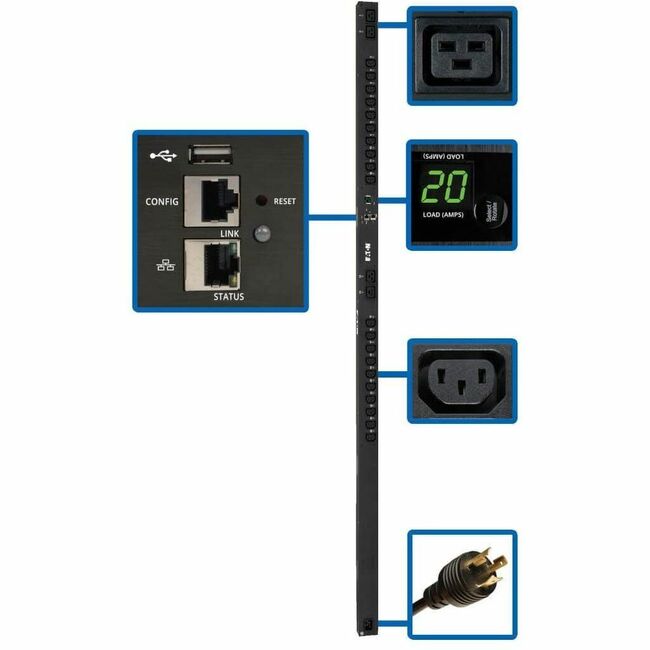

Tripp Lite PDU Switched 3.2-3.8kW 200-240V 20 C13;4 C19 LX Platform 0U TAA
New
Tripp Lite PDU Switched 3.2-3.8kW 200-240V 20 C13;4 C19 LX Platform 0U TAA - Switched - NEMA L6-20P, IEC 60320 C20 - 4 x IEC 60320 C19, 20 x IEC 60320 C13 - 230 V AC - 0U - Vertical - Rack Mount - TAA Compliant
| $818.98 Retail $1,331.00 |
- 3.2-3.8kW 200/208/230/240V switched PDU
- 24 individually controllable outlets-20 C13, 4 C19
- Built-in LX Platform interface for 24/7 remote access
- Digital ammeter for on-site load monitoring in real time
- C20 inlet with 10ft NEMA L6-20P AC power cord
You may be also interested
$83.05
$1,944.21
$2,695.00
$13.47
$16.95
$708.68
$717.00
$1,957.97
$2,850.00
$165.75
$254.44
$938.71
$835.00
$725.70
$1,007.00
$296.76
$445.54
$1,424.86
$1,449.95
$450.17
$633.00
$618.26
$750.01
$1,044.27
$1,617.00
$791.43
$228.51
$357.56
$73.07
$106.00
$864.46
$649.80
$851.46
$212.14
$259.95
$3,033.04
$4,200.00
Tripp Lite PDU Switched 3.2-3.8kW 200-240V 20 C13;4 C19 LX Platform 0U TAA - Switched - NEMA L6-20P, IEC 60320 C20 - 4 x IEC 60320 C19, 20 x IEC 60320 C13 - 230 V AC - 0U - Vertical - Rack Mount - TAA Compliant
Switched - NEMA L6-20P, IEC 60320 C20 - 4 x IEC 60320 C19, 20 x IEC 60320 C13 - 230 V AC - 0U - Vertical - Rack Mount - TAA Compliant
Switched - NEMA L6-20P, IEC 60320 C20 - 4 x IEC 60320 C19, 20 x IEC 60320 C13 - 230 V AC - 0U - Vertical - Rack Mount - TAA Compliant
Product Specifications
| Mounting Orientation | Vertical |
| PDU Type | Switched |
| Phase | Single Phase |
| Power Rating (Watt) | 3800 W |
| Receptacle Detail | 4 x IEC 60320 C19 |
| Receptacle Detail | 20 x IEC 60320 C13 |
| Brand Name | Tripp Lite |
| Country of origin | Taiwan |
| Depth | 2.7" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 70" |
| Input current | 20 A |
| Input voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Limited Warranty | 2 Year |
| Management | Protocols:
|
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | PDUMV20HVNETLX |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | The PDUMV20HVNETLX 3.2-3.8kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on turn off reboot or lock out power to each outlet. Recommended for any IT or industrial application it features 24 switched outlets (20 C13 and 4 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L6-20P plug connects the PDU's C20 inlet to a compatible AC power source generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP and NTP. A digital ammeter allows you to monitor each bank's load in real time to ensure it remains well below maximum capacity with no danger of overload. The vertical PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access. |
| Mount Type | Rack-mountable |
| Package Contents |
|
| Plug/Connector Type | NEMA L6-20P |
| Plug/Connector Type | IEC 60320 C20 |
| Product Name | PDUMV20HVNETLX 24-Outlet PDU |
| Product Type | PDU |
| Rack Height | 0U |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | IEC 60320 C13 |
| UPC Alternates | 037332205292 818243091675 |
| Weight (Approximate) | 8.50 lb |
| Width | 2.2" |
Material Safety Data Sheet
A Material Safety Data Sheet (MSDS) is a document that contains information on the potential hazards (health, fire, reactivity and environmental) and how to work safely with the chemical product.
Sorry this product does not have any reviews at this time.
