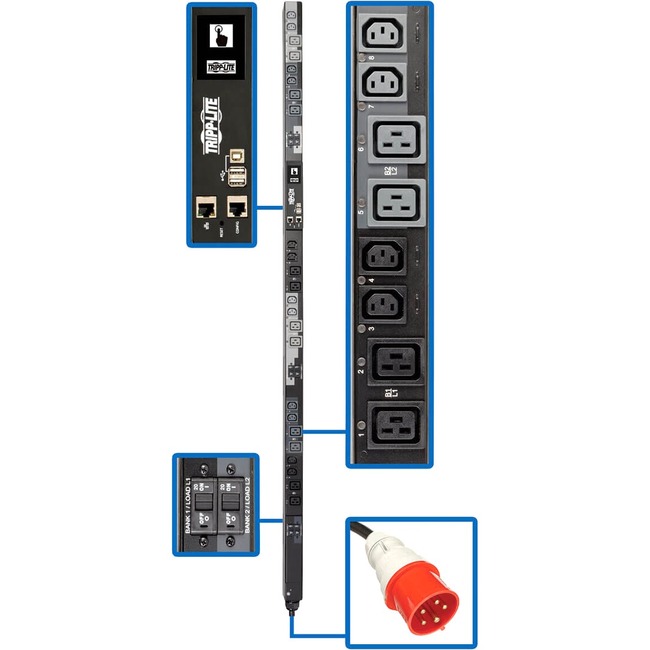

Tripp Lite 3-Phase PDU Switched 22.2kW 220/230V 12 C13; 12 C19 32A Red TAA
| $1,347.28 Retail $2,212.70 |
- 12 C13 and 12 C19 220/230V outlets distribute AC power to connected equipment
- Built-in Java-free HTML5-based LX Platform interface allows you 24/7 remote access
- Remote power monitoring and control reduces on-site visits and maintenance costs
- 6 ft. cord with IEC 309 32A Red (3P+N+E) 3-phase input connects to AC power source
- Color touchscreen LCD provides current levels, environmental data and network info
Switched - IEC 60309 32A Red 3P+N+E - 12 x IEC 60320 C13, 12 x IEC 60320 C19 - 380 V AC, 400 V AC - Network (RJ-45) - 0U - Vertical - Rack Mount - Rack-mountable - TAA Compliant
Product Specifications
| Mounting Orientation | Vertical |
| Mounting Orientation | Vertical |
| PDU Type | Switched |
| PDU Type | Switched |
| Phase | Three Phase |
| Phase | Three Phase |
| Power Rating (Watt) | 22.20 kW |
| Power Rating (Watt) | 22.20 kW |
| Receptacle Detail | 12 x IEC 60320 C13 |
| Receptacle Detail | 12 x IEC 60320 C19 |
| Receptacle Detail | 12 x IEC 60320 C13 |
| Receptacle Detail | 12 x IEC 60320 C19 |
| Brand Name | Tripp Lite |
| Brand Name | Tripp Lite |
| Country of origin | Taiwan |
| Country of origin | Taiwan |
| Depth | 2.5" |
| Depth | 2.5" |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Height | 70" |
| Height | 70" |
| Input current | 32 A |
| Input current | 32 A |
| Input voltage | 380 V AC |
| Input voltage | 400 V AC |
| Input voltage | 400 V AC |
| Input voltage | 380 V AC |
| Limited Warranty | 2 Year |
| Limited Warranty | 2 Year |
| Management |
|
| Management |
|
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | PDU3XEVSR6G32A |
| Manufacturer Part Number | PDU3XEVSR6G32A |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | 3-Phase PDU Distributes Monitors and Manages Network-Grade Power Recommended for data centers server rooms and high-density network closets this switched PDU provides advanced network control and remote power monitoring with the ability to turn on turn off reboot or lock out power to each outlet. You can more efficiently manage network power consumption and remotely reboot locked network items without having to visit the site. Reducing the number of on-site visits can help lower the cost of data center maintenance thus lowering the 0U PDU's total cost of ownership. 24 Outlets Dispense AC Power to Connected Equipment During normal operation 24 individually controllable outlets-12 C13 and 12 C19-in six separately breakered load banks distribute AC power to rack equipment. Each 220/230V outlet is accompanied by an LED that illuminates when the outlet is ramped up and ready to be used. The outlets and banks can be individually monitored to ensure proper load balance and prevent downtime. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged. Built-In LX Platform Network Management Card Allows Remote Access 24/7 The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100/1000 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP and NTP. The 0U PDU can receive IP address assignments via DHCP server (automatic) or static (manual) method. Color Touchscreen LCD Offers Important Data at a Glance An easy-to-navigate color touchscreen LCD reports network data input current level per phase and output current per load bank and per outlet with ±1% billing-grade accuracy. It also generates a unique QR code to allow read-only access to the 3-phase PDU via mobile device. If an EnviroSense2 module is connected to the PDU the LCD also displays its status and environmental data such as temperature and humidity. Easy to Install Vertically in an EIA-Standard 19 in. Rack The 70-inch 0U PDU mounts vertically using the pre-installed toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. A six-foot cord with IEC 309 32A Red (3P+N+E) 380/400V 3-phase input connects the switched PDU to a compatible AC power source generator or protected UPS. TAA-Compliant for GSA Schedule Purchases The PDU3XEVSR6G32A is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. 2-Year Warranty The PDU3XEVSR6G32A is backed by a 2-year warranty ensuring reliability and performance. |
| Marketing Information | 3-Phase PDU Distributes Monitors and Manages Network-Grade Power Recommended for data centers server rooms and high-density network closets this switched PDU provides advanced network control and remote power monitoring with the ability to turn on turn off reboot or lock out power to each outlet. You can more efficiently manage network power consumption and remotely reboot locked network items without having to visit the site. Reducing the number of on-site visits can help lower the cost of data center maintenance thus lowering the 0U PDU's total cost of ownership. 24 Outlets Dispense AC Power to Connected Equipment During normal operation 24 individually controllable outlets-12 C13 and 12 C19-in six separately breakered load banks distribute AC power to rack equipment. Each 220/230V outlet is accompanied by an LED that illuminates when the outlet is ramped up and ready to be used. The outlets and banks can be individually monitored to ensure proper load balance and prevent downtime. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged. Built-In LX Platform Network Management Card Allows Remote Access 24/7 The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100/1000 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP and NTP. The 0U PDU can receive IP address assignments via DHCP server (automatic) or static (manual) method. Color Touchscreen LCD Offers Important Data at a Glance An easy-to-navigate color touchscreen LCD reports network data input current level per phase and output current per load bank and per outlet with ±1% billing-grade accuracy. It also generates a unique QR code to allow read-only access to the 3-phase PDU via mobile device. If an EnviroSense2 module is connected to the PDU the LCD also displays its status and environmental data such as temperature and humidity. Easy to Install Vertically in an EIA-Standard 19 in. Rack The 70-inch 0U PDU mounts vertically using the pre-installed toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. A six-foot cord with IEC 309 32A Red (3P+N+E) 380/400V 3-phase input connects the switched PDU to a compatible AC power source generator or protected UPS. TAA-Compliant for GSA Schedule Purchases The PDU3XEVSR6G32A is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. 2-Year Warranty The PDU3XEVSR6G32A is backed by a 2-year warranty ensuring reliability and performance. |
| Mount Type | Rack-mountable |
| Mount Type | Rack-mountable |
| Output voltage | 220 V AC |
| Output voltage | 230 V AC |
| Output voltage | 220 V AC |
| Output voltage | 230 V AC |
| Package Contents |
|
| Package Contents |
|
| Plug/Connector Type | IEC 60309 32A Red 3P+N+E |
| Plug/Connector Type | IEC 60309 32A Red 3P+N+E |
| Product Name | PDU3XEVSR6G32A 24-Outlets PDU |
| Product Name | PDU3XEVSR6G32A 24-Outlets PDU |
| Product Type | PDU |
| Product Type | PDU |
| Protection Type | Overload Protection |
| Protection Type | Overload Protection |
| Rack Height | 0U |
| Rack Height | 0U |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | IEC 60320 C19 |
| UPC Alternates | 037332206831 |
| UPC Alternates | 037332206831 |
| Weight (Approximate) | 15.52 lb |
| Weight (Approximate) | 15.52 lb |
| Width | 2.2" |
| Width | 2.2" |
