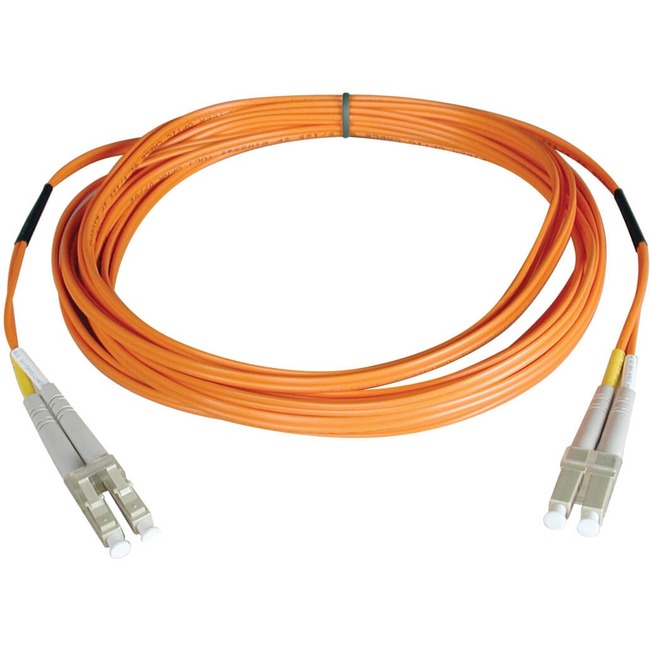

Tripp Lite 100M Duplex Multimode 50/125 Fiber Optic Patch Cable LC/LC 328' 328ft 100 Meter

• Use on fiber and fibre channel installations
• Backward compatible with 62.5 micron fiber
• Built-in headroom for future applications
• Number of fibers: 2
• Fiber type: all glass graded index
• Primary coating diameter: 245+/-15 microns
• Primary coating material: acrylate
• Secondary coating diameter: 900+/-50 microns
• Attenuation @850NM: 3.5DB/KM maximum @1300NM: 1.0DB/KM maximum
• Bandwidth @850NM: 220 MHz-KM minimum @1300NM: 600 MHz-KM minimum
• Numeric apeture: .275 nominal
• Proof test level: 100000 PSI
• Insertion loss testing performed on every connector (0.2db typical) and provided with cable
• Beveled edge on ends of glass makes insertion of plug a breeze

• FDDI
• OFNR

Tripp Lite's 100-meter multimode duplex Fibre Channel optic LC/LC patch cable is manufactured from 50/125 zipcord fiber. The cable has LC connectors on each end. It has a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and provides built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in 1 2 3 5 10 15 20 25 30 and 50 meter lengths. Enter "N520-" in the search field to bring up all lengths. For LC-SC cables search "N516-" and for SC-SC search "N506-". Tripp Lite warrants this product to be free from defects in materials and workmanship for life.

• Fiber Optic Duplex Patch Cable
• 100M Duplex MMF Cable LC/LC 50/125 Fiber
