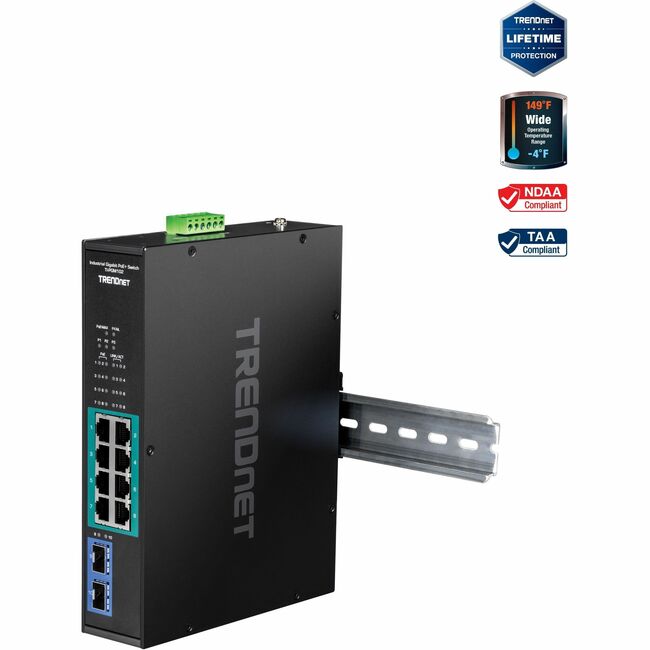

TRENDnet 10-Port Industrial Gigabit PoE+ Switch, Extreme Temperature Range -20° - 65°C (-4° - 149°F), DINRail Switch, 50-55V DC, 8 x Gigabit PoE+ Ports, 2 x Gigabit SFP Slots, TI-PGM102, Black - 8 Ports - Gigabit Ethernet - 1000Base-FX, 1000Base-T - 2 Layer Supported - 2 SFP Slots - AC/DC - 6.30 W Power Consumption - 240 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - DIN Rail Mountable, Wall Mountable
8 Ports - Gigabit Ethernet - 1000Base-FX, 1000Base-T - 2 Layer Supported - 2 SFP Slots - AC/DC - 6.30 W Power Consumption - 240 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - DIN Rail Mountable, Wall Mountable
| Network (RJ-45) | Yes |
| Network (RJ-45) | Yes |
| PoE Budget | 240 W |
| PoE Budget | 240 W |
| Product Material | Metal |
| Product Material | Metal |
| Total Number of Network Ports | 8 |
| Total Number of Network Ports | 8 |
| Country of origin | Taiwan |
| Depth | 6.3" |
| Depth | 6.3" |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP (mini-GBIC) |
| Expansion Slot Type | SFP (mini-GBIC) |
| Form factor | Wall Mountable |
| Form factor | DIN Rail Mountable |
| Form factor | Wall Mountable |
| Form factor | DIN Rail Mountable |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Height | 1.8" |
| Height | 1.8" |
| Input voltage | 50 V DC |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Input voltage | 50 V DC |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Input voltage | 55 V DC |
| Input voltage | 55 V DC |
| Layer Supported | 2 |
| Layer Supported | 2 |
| Limited Warranty | Lifetime |
| Manufacturer | TRENDnet |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TIPGM102 |
| Manufacturer Part Number | TI-PGM102 |
| Manufacturer Part Number | TI-PGM102 |
| Manufacturer Website Address | http://www.trendnet.com |
| Manufacturer Website Address | http://www.trendnet.com |
| Marketing Information | DEVICE INTERFACE: 8 x Gigabit PoE+ Ports; 2 x Gigabit SFP Slots; 6-Pin Removable Terminal Block; DIN-Rail Mount; LED Indicators; Wall Mount; Grounding Point POE+ POWER & SWITCHING CAPACITY: The industrial PoE+ switch is equipped with 20Gbps switching capacity and a 240W @56V DC PoE power budget supplies up to eight Power over Ethernet devices with PoE+ power. WIDE TEMPERATURE SWITCH: The metal hardened IP30 rated DIN-Rail Gigabit PoE+ switch is equipped with a rugged IP30 rated enclosure and designed to withstand a wide temperature range 20° - 65°C (-4° - 149°F) for harsh environments. DIN-RAIL & WALL MOUNT KIT: This 10-Port Gigabit PoE+ switch comes with an integrated DIN-Rail mount and mounting hardware brackets. REDUNDANT POWER: The 10-port network switch has dual redundant power inputs with overload current protection (Power supply sold separately (models: TI-S24052 TI-S24048). ALARM RELAY: The DIN-Rail switch alarm output is triggered by power failure of primary and/or redundant power TRENDnet LIFETIME WARRANTY: The TI-PGM102 Industrial Gigabit PoE+ Switch comes with Lifetime TRENDnet Manufacturer WARRANTY. NDAA / TAA compliant (U.S. and Canada only) More from the Manufacturer |
| Marketing Information | - DEVICE INTERFACE: 8 x Gigabit PoE+ Ports; 2 x Gigabit SFP Slots; 6-Pin Removable Terminal Block; DIN-Rail Mount; LED Indicators; Wall Mount; Grounding Point
- POE+ POWER & SWITCHING CAPACITY: The industrial PoE+ switch is equipped with 20Gbps switching capacity and a 240W @56V DC PoE power budget supplies up to eight Power over Ethernet devices with PoE+ power.
- DIN-RAIL & WALL MOUNT KIT: This 10-Port Gigabit PoE+ switch comes with an integrated DIN-Rail mount and mounting hardware brackets.
- EXTREME TEMPERATURE SWITCH: The metal hardened IP30 rated DIN-Rail Gigabit PoE+ switch is equipped with a rugged IP30 rated enclosure and designed to withstand a wide temperature range 20° - 65°C (-4° - 149°F) for harsh environments.
- REDUNDANT POWER: The 10-port network switch has dual redundant power inputs with overload current protection (power supply sold separately: models:TI-S12048 / 48VDC3000).
- ALARM RELAY: The DIN-Rail switch alarm output is triggered by power failure of primary and/or redundant power
- TRENDnet LIFETIME WARRANTY: The TI-PGM102 Industrial Gigabit PoE+ Switch comes with Lifetime TRENDnet Manufacturer WARRANTY.
TRENDnet's 10-Port Industrial Gigabit PoE+ DIN-Rail Switch -20° - 65°C (-4° - 149°F) model TI-PGM102 has eight gigabit PoE+ ports with a 240W PoE power budget plus two gigabit SFP slots for long distance fiber applications. Users are able to connect eight PoE+ devices to the switch while still providing two gigabit SFP slots for additional network connections. This switch is equipped with an IP30 rated metal enclosure designed to operate within a wide temperature range of -20° - 65°C (-4° - 149°F) for harsh industrial environments.
PoE Power
A 240W PoE+ power budget supplies up to eight Power over Ethernet devices with PoE+ power.
Fault Tolerance
Features redundant power inputs with overload current protection and output alarm relay.
Industrial Hardened Design
Rugged IP30 rated housing is designed to operate within a wide temperature range of -20° - 65°C (-4° - 149°F).
NETWORKING SOLUTION | FEATURES | Full PoE+ Power Budget
Supplies up to 30W of PoE/PoE+ power per port with a 240W PoE power budget
Switching Capacity
20Gbps switching capacity
Jumbo Frame
Sends larger packets or Jumbo Frames (up to 9KB) for increased performance
Network Ports
8 x Gigabit PoE+ ports and 2 x Gigabit slots
Redundant Power
Redundant power inputs with overload current protection (power supply sold separately models: TI-S24048 48VDC3000)
Wide Operating Temperature
Rated for an operating temperature range of -20° - 65°C (-4° - 149°F)
DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-Rail and wall-mount hardware
Alarm Relay
Alarm relay triggered by power failure of primary and/or redundant power
Grounding Point
Grounding point protects equipment from external electrical surges |
| Marketing Information | DEVICE INTERFACE: 8 x Gigabit PoE+ Ports; 2 x Gigabit SFP Slots; 6-Pin Removable Terminal Block; DIN-Rail Mount; LED Indicators; Wall Mount; Grounding Point POE+ POWER & SWITCHING CAPACITY: The industrial PoE+ switch is equipped with 20Gbps switching capacity and a 240W @56V DC PoE power budget supplies up to eight Power over Ethernet devices with PoE+ power. WIDE TEMPERATURE SWITCH: The metal hardened IP30 rated DIN-Rail Gigabit PoE+ switch is equipped with a rugged IP30 rated enclosure and designed to withstand a wide temperature range 20° - 65°C (-4° - 149°F) for harsh environments. DIN-RAIL & WALL MOUNT KIT: This 10-Port Gigabit PoE+ switch comes with an integrated DIN-Rail mount and mounting hardware brackets. REDUNDANT POWER: The 10-port network switch has dual redundant power inputs with overload current protection (Power supply sold separately (models: TI-S24052 TI-S24048). ALARM RELAY: The DIN-Rail switch alarm output is triggered by power failure of primary and/or redundant power TRENDnet LIFETIME WARRANTY: The TI-PGM102 Industrial Gigabit PoE+ Switch comes with Lifetime TRENDnet Manufacturer WARRANTY. More from the Manufacturer |
| Marketing Information | - DEVICE INTERFACE: 8 x Gigabit PoE+ Ports; 2 x Gigabit SFP Slots; 6-Pin Removable Terminal Block; DIN-Rail Mount; LED Indicators; Wall Mount; Grounding Point
- POE+ POWER & SWITCHING CAPACITY: The industrial PoE+ switch is equipped with 20Gbps switching capacity and a 240W @56V DC PoE power budget supplies up to eight Power over Ethernet devices with PoE+ power.
- DIN-RAIL & WALL MOUNT KIT: This 10-Port Gigabit PoE+ switch comes with an integrated DIN-Rail mount and mounting hardware brackets.
- EXTREME TEMPERATURE SWITCH: The metal hardened IP30 rated DIN-Rail Gigabit PoE+ switch is equipped with a rugged IP30 rated enclosure and designed to withstand a wide temperature range 20° - 65°C (-4° - 149°F) for harsh environments.
- REDUNDANT POWER: The 10-port network switch has dual redundant power inputs with overload current protection (power supply sold separately: models:TI-S12048 / 48VDC3000).
- ALARM RELAY: The DIN-Rail switch alarm output is triggered by power failure of primary and/or redundant power
- TRENDnet LIFETIME WARRANTY: The TI-PGM102 Industrial Gigabit PoE+ Switch comes with Lifetime TRENDnet Manufacturer WARRANTY.
TRENDnet's 10-Port Industrial Gigabit PoE+ DIN-Rail Switch -20° - 65°C (-4° - 149°F) model TI-PGM102 has eight gigabit PoE+ ports with a 240W PoE power budget plus two gigabit SFP slots for long distance fiber applications. Users are able to connect eight PoE+ devices to the switch while still providing two gigabit SFP slots for additional network connections. This switch is equipped with an IP30 rated metal enclosure designed to operate within a wide temperature range of -20° - 65°C (-4° - 149°F) for harsh industrial environments.
PoE Power
A 240W PoE+ power budget supplies up to eight Power over Ethernet devices with PoE+ power.
Fault Tolerance
Features redundant power inputs with overload current protection and output alarm relay.
Industrial Hardened Design
Rugged IP30 rated housing is designed to operate within a wide temperature range of -20° - 65°C (-4° - 149°F).
NETWORKING SOLUTION | FEATURES | Full PoE+ Power Budget
Supplies up to 30W of PoE/PoE+ power per port with a 240W PoE power budget
Switching Capacity
20Gbps switching capacity
Jumbo Frame
Sends larger packets or Jumbo Frames (up to 9KB) for increased performance
Network Ports
8 x Gigabit PoE+ ports and 2 x Gigabit slots
Redundant Power
Redundant power inputs with overload current protection (power supply sold separately models: TI-S24048 48VDC3000)
Wide Operating Temperature
Rated for an operating temperature range of -20° - 65°C (-4° - 149°F)
DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-Rail and wall-mount hardware
Alarm Relay
Alarm relay triggered by power failure of primary and/or redundant power
Grounding Point
Grounding point protects equipment from external electrical surges |
| Marketing Information | DEVICE INTERFACE: 8 x Gigabit PoE+ Ports; 2 x Gigabit SFP Slots; 6-Pin Removable Terminal Block; DIN-Rail Mount; LED Indicators; Wall Mount; Grounding Point POE+ POWER & SWITCHING CAPACITY: The industrial PoE+ switch is equipped with 20Gbps switching capacity and a 240W @56V DC PoE power budget supplies up to eight Power over Ethernet devices with PoE+ power. WIDE TEMPERATURE SWITCH: The metal hardened IP30 rated DIN-Rail Gigabit PoE+ switch is equipped with a rugged IP30 rated enclosure and designed to withstand a wide temperature range 20° - 65°C (-4° - 149°F) for harsh environments. DIN-RAIL & WALL MOUNT KIT: This 10-Port Gigabit PoE+ switch comes with an integrated DIN-Rail mount and mounting hardware brackets. REDUNDANT POWER: The 10-port network switch has dual redundant power inputs with overload current protection (power supply sold separately: models:TI-S12048 / 48VDC3000). ALARM RELAY: The DIN-Rail switch alarm output is triggered by power failure of primary and/or redundant power TRENDnet LIFETIME WARRANTY: The TI-PGM102 Industrial Gigabit PoE+ Switch comes with Lifetime TRENDnet Manufacturer WARRANTY. NDAA / TAA compliant (U.S. and Canada only) More from the Manufacturer |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Twisted Pair |
| Network Technology | 1000Base-T |
| Network Technology | 1000Base-T |
| Network Technology | 1000Base-FX |
| Network Technology | 1000Base-FX |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.3z |
| Networking standards | IEEE 802.3z |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3x |
| Package Contents | - 10-Port Industrial Gigabit PoE+ DIN-Rail Switch -20° - 65°C (-4° - 149°F)
- Quick Installation Guide
- Removable Terminal Block
|
| Package Contents | - 10-Port Industrial Gigabit PoE+ DIN-Rail Switch -20° - 65°C (-4° - 149°F)
- Quick Installation Guide
- Removable Terminal Block
|
| Plug/Connector Type | Terminal Block |
| Plug/Connector Type | Terminal Block |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+ |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+ |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| Power consumption | 6.30 W |
| Power consumption | 6.30 W |
| Power source | AC/DC |
| Power source | AC/DC |
| Product Model | TI-PGM102 |
| Product Name | 10-Port Industrial Gigabit PoE+ DIN-Rail Switch -20° - 65°C (-4° - 149°F) |
| Product Name | 10-Port Industrial Gigabit PoE+ DIN-Rail Switch -20° - 65°C (-4° - 149°F) |
| Product Type | Ethernet Switch |
| Product Type | Ethernet Switch |
| UPC Alternates | 710931162202 |
| UPC Alternates | 710931162202 |
| Weight (Approximate) | 2.43 lb |
| Weight (Approximate) | 2.43 lb |
| Width | 8.3" |
| Width | 8.3" |
